High performance creel

1st log feed with infeed and log turner

With log infeed 4 logs with log separation

Feeder, taper roller table, log turner, alignment roller table and feeder

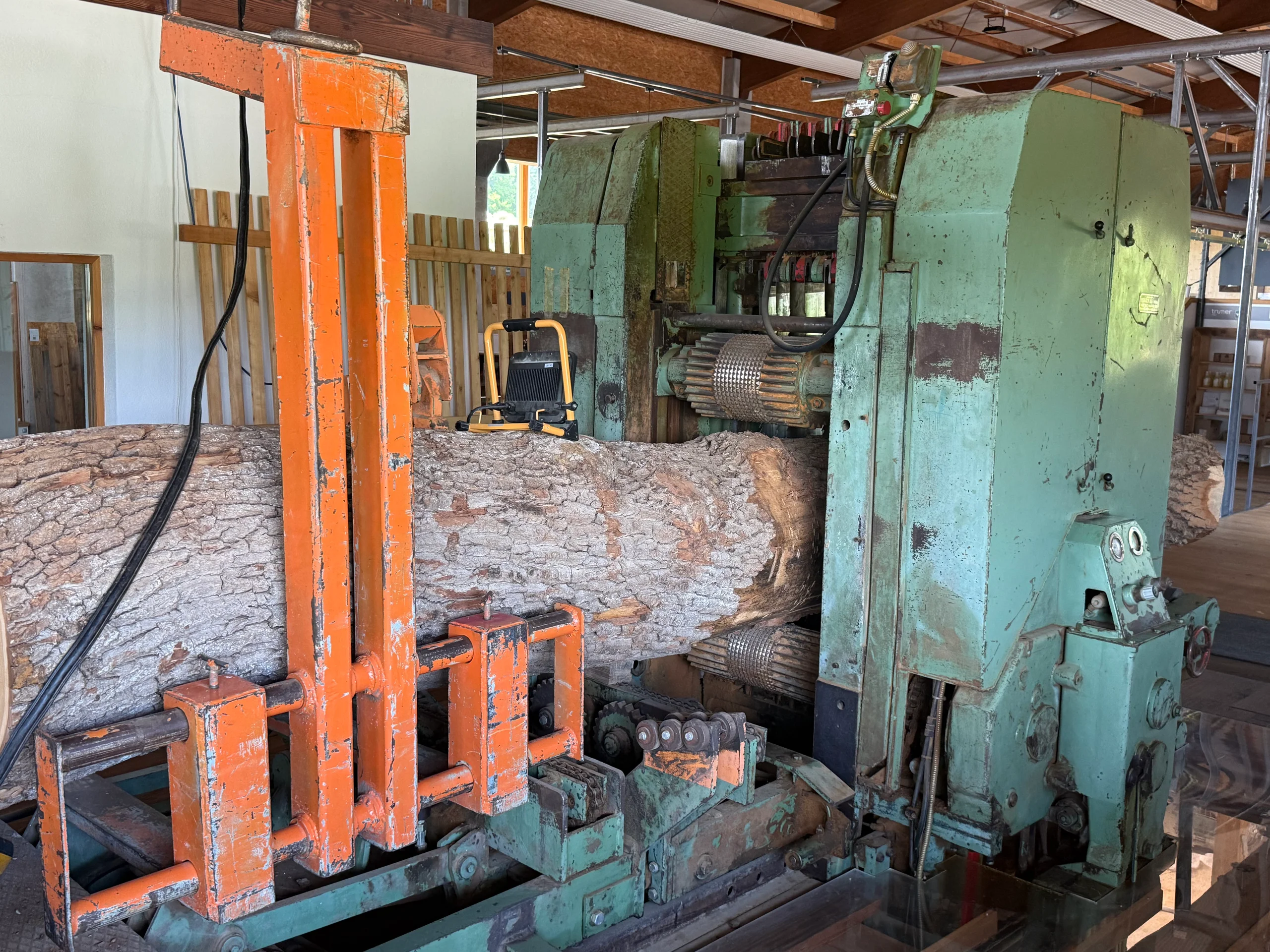

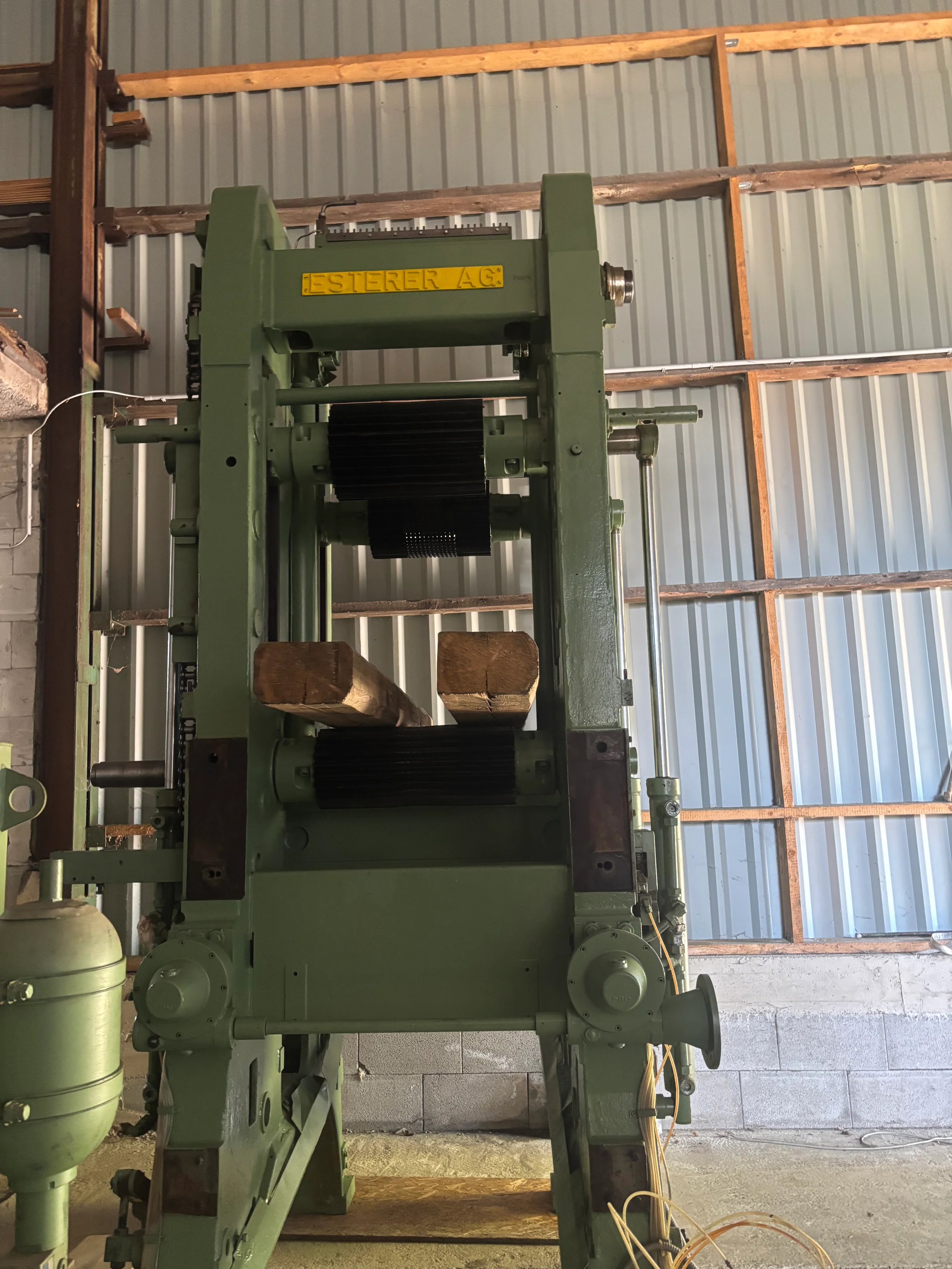

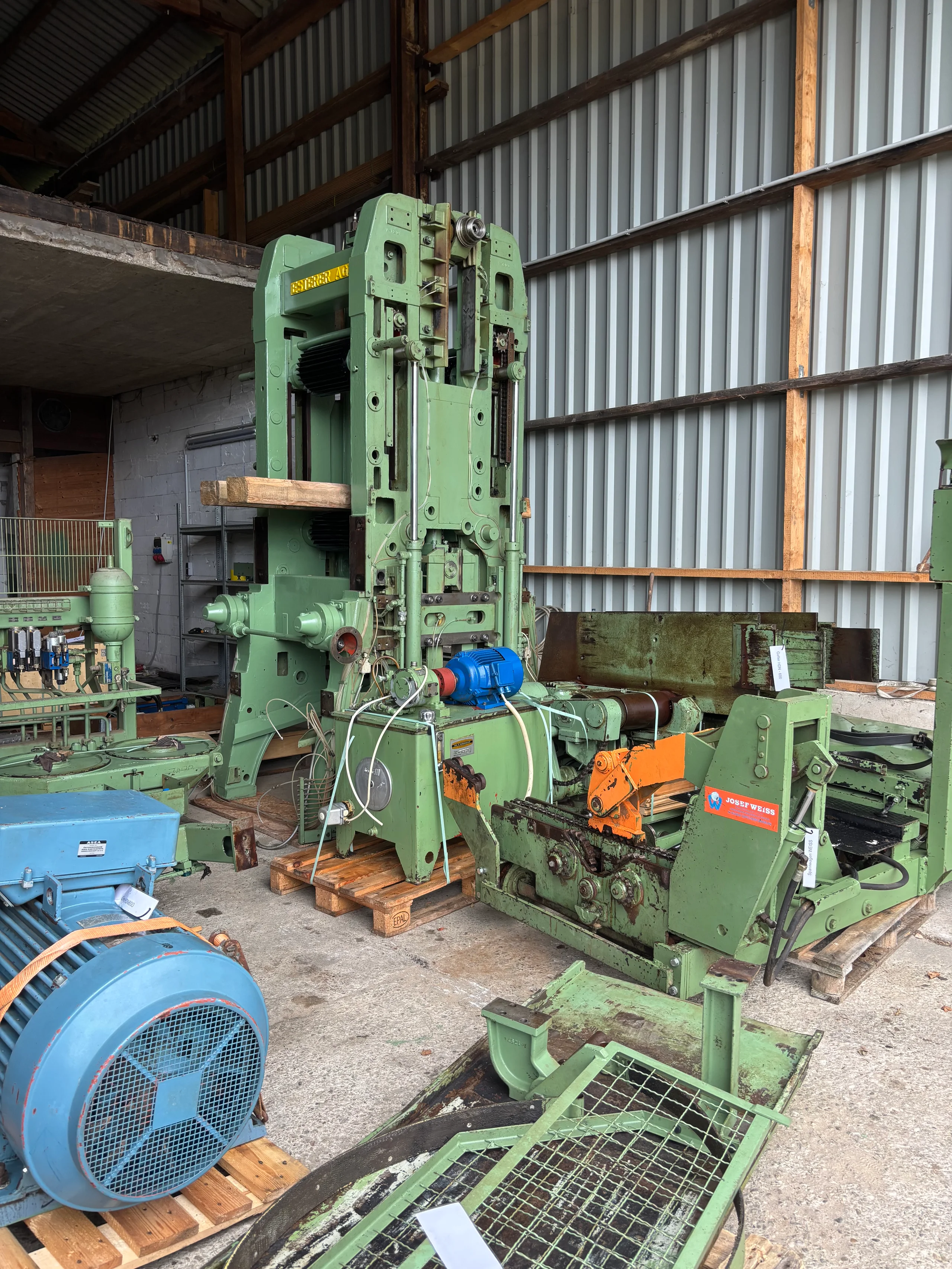

For sale: EWD HDN 600 swing frame creel

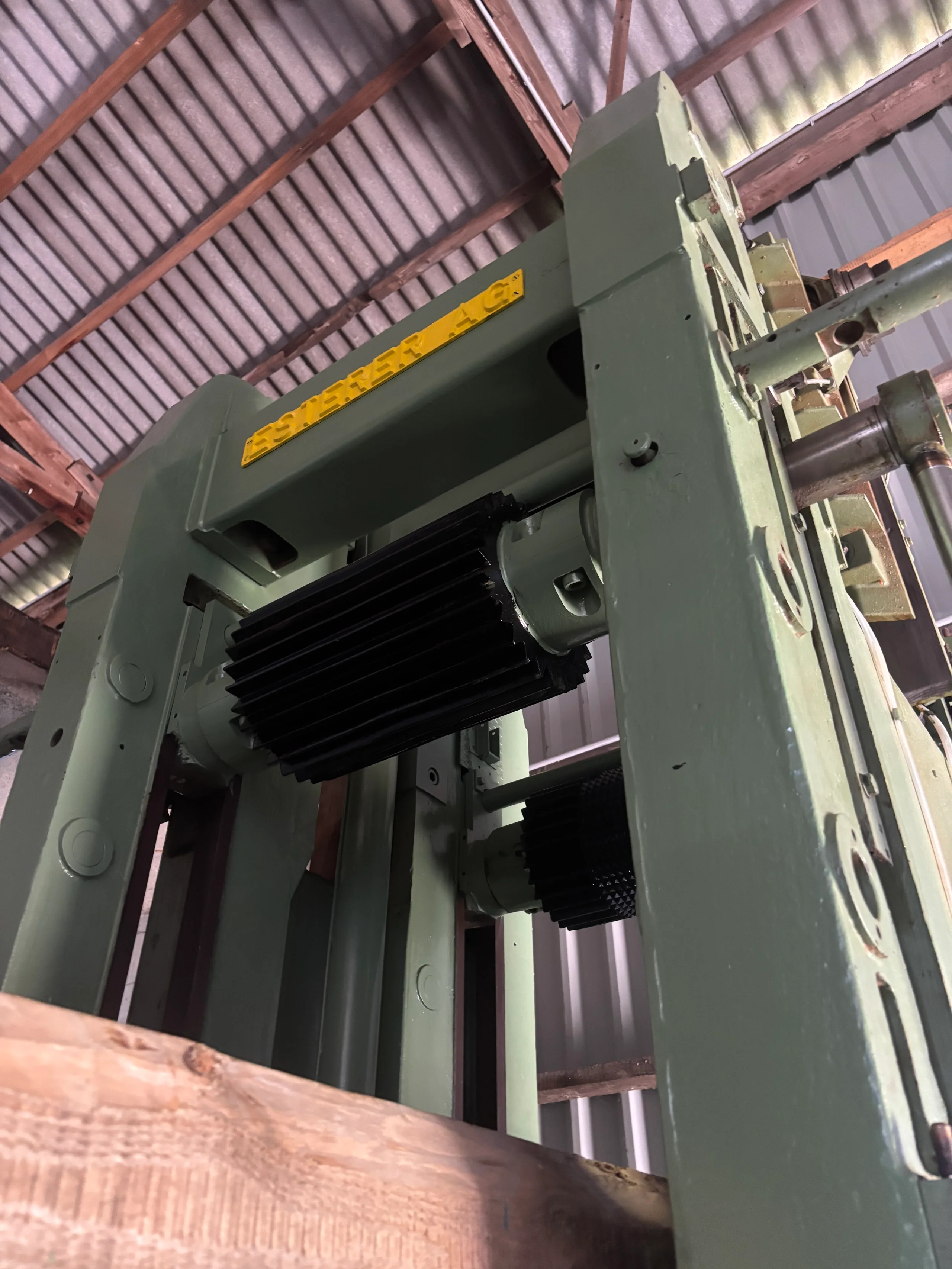

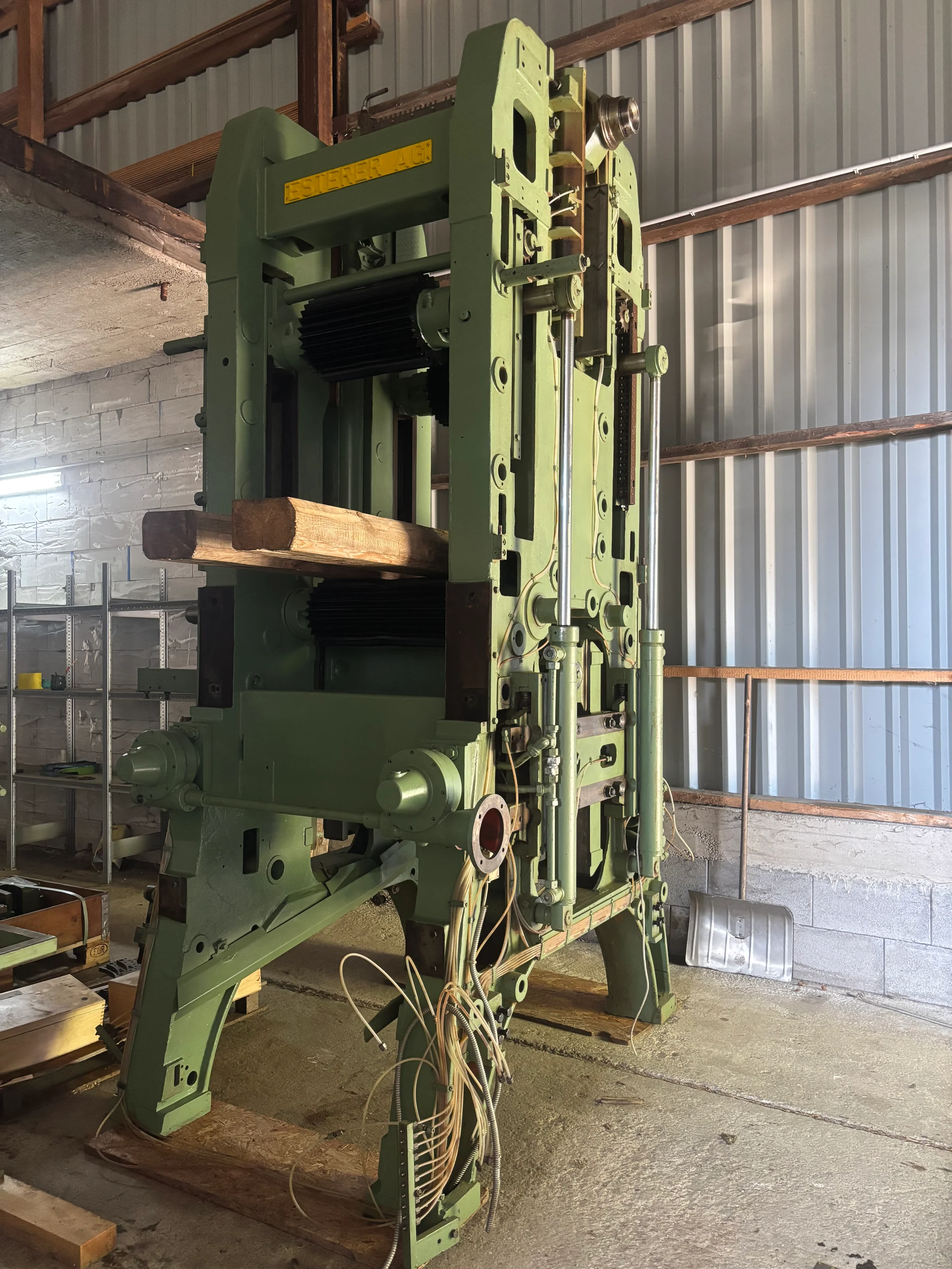

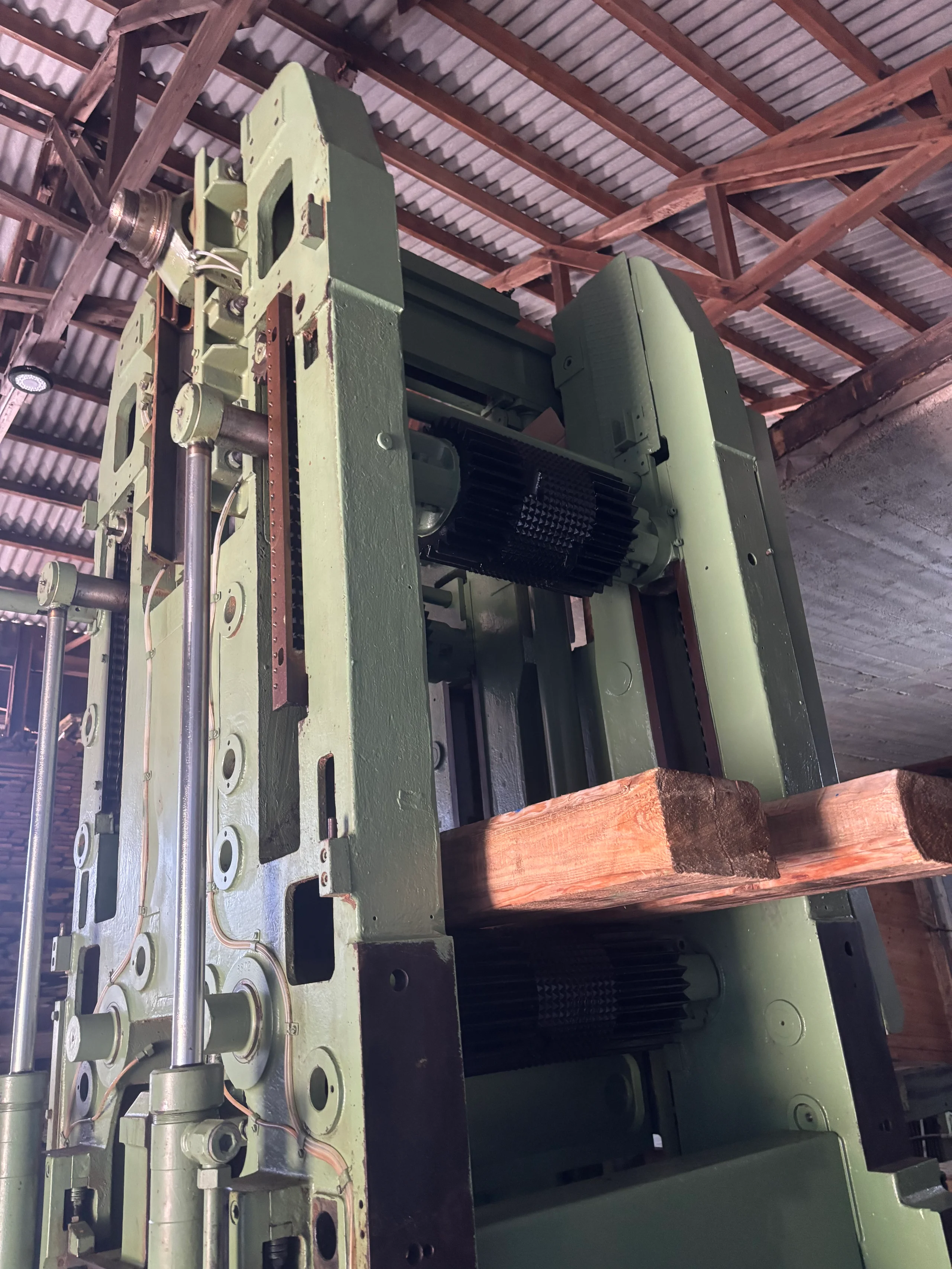

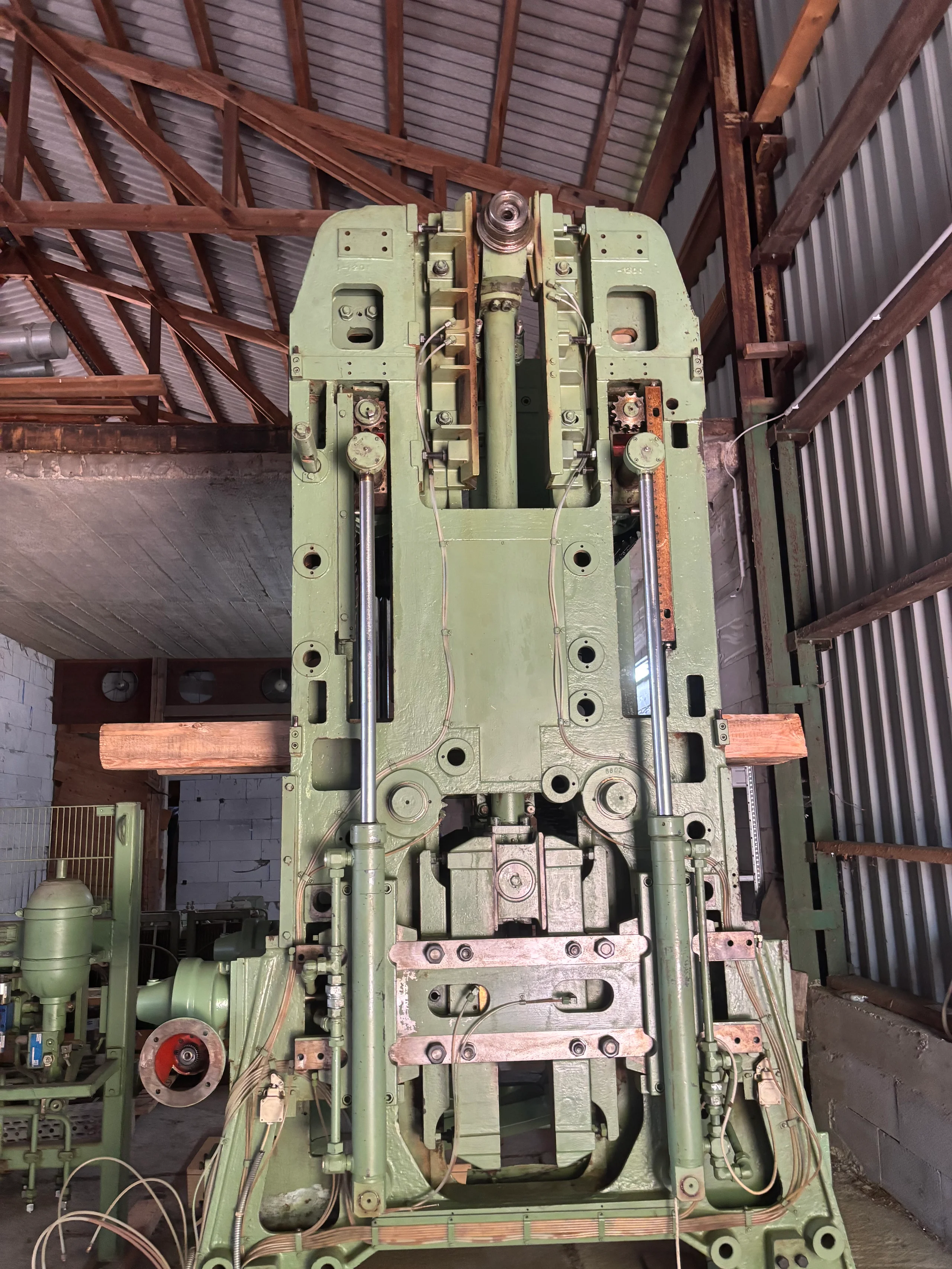

The EWD HDN 600 is a heavy-duty swing frame sash gang saw developed for use in medium-sized and large sawmills. It is characterized by its robust design and state-of-the-art technology, which ensure maximum efficiency and precision in timber processing.

Technical data:

• Stroke: 600 mm
• Passage width: 730 mm
• Passage height: 700 mm
• Maximum speed: 320 rpm
• Feed speed: 0-13 m/min, infinitely variable
• Feed power: 8.5 kW
• Pulley Ø: 1000 mm
• Maximum drive power: 160 kW
• Total weight: approx. 12 t

Special features:

• Hydraulic feed system: Infinitely variable over the entire range for an optimum ratio between sawing speed and feed speed.
• Automatic overhang adjustment: Automatically adjusts according to the selected feed rate to minimize up-cutting and achieve excellent surface quality.
• Cooled upper frame guides: Reduce wear and ensure smooth machine operation.
• Robust construction: Durable and easy to maintain, ideal for continuous use in demanding production environments.

Condition:

The machine is in excellent condition, has been regularly serviced and is ready for immediate use.

Fully hydraulic with automatic overhang adjustment

Hydraulic saw clamp and saw infeed

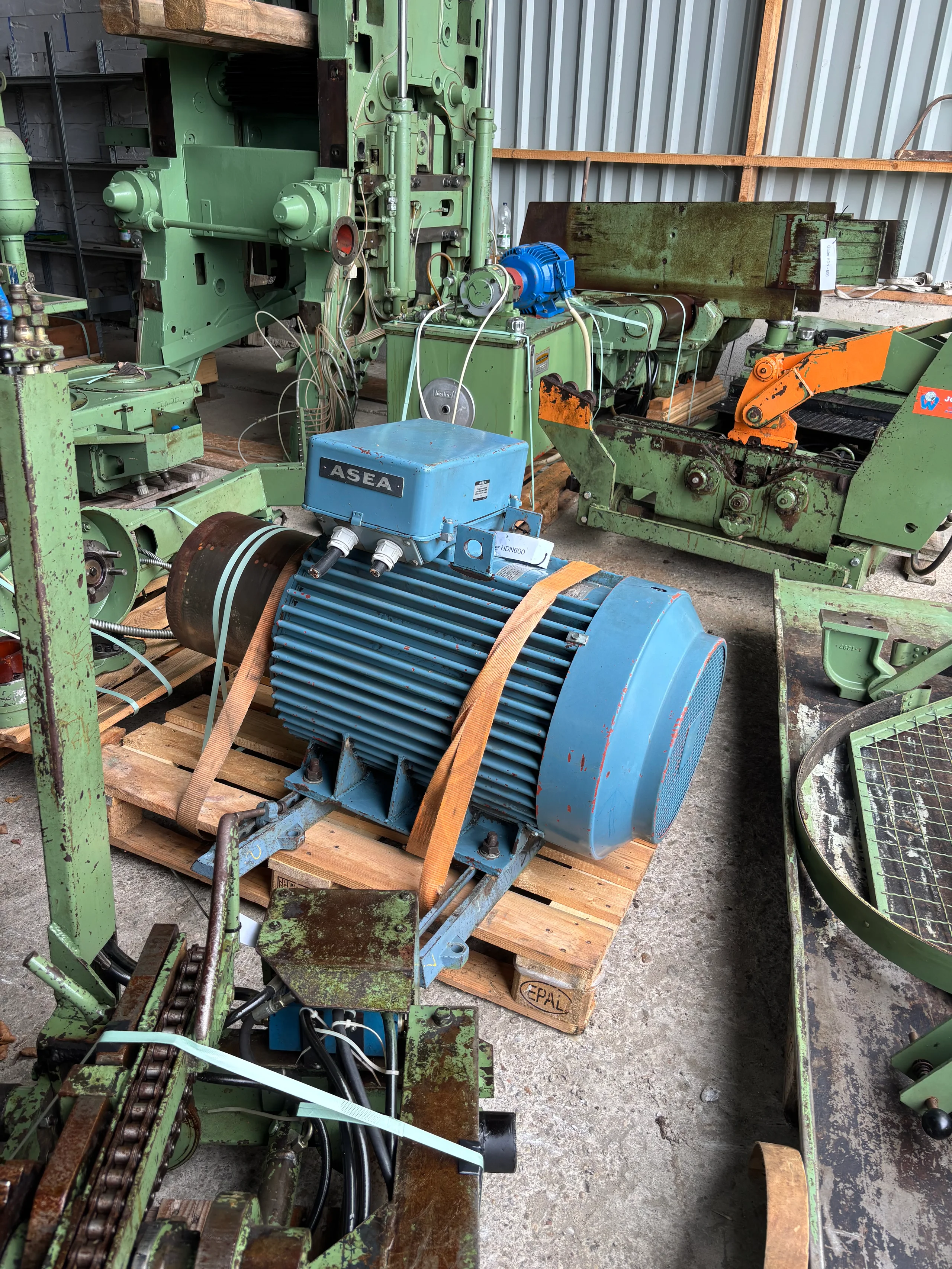

Drive motor and reduction gear

Electric control cabinet with control unit

Riving knife type AVER, with hydraulic drive

In very good condition, built in 1990, current manufacturer service

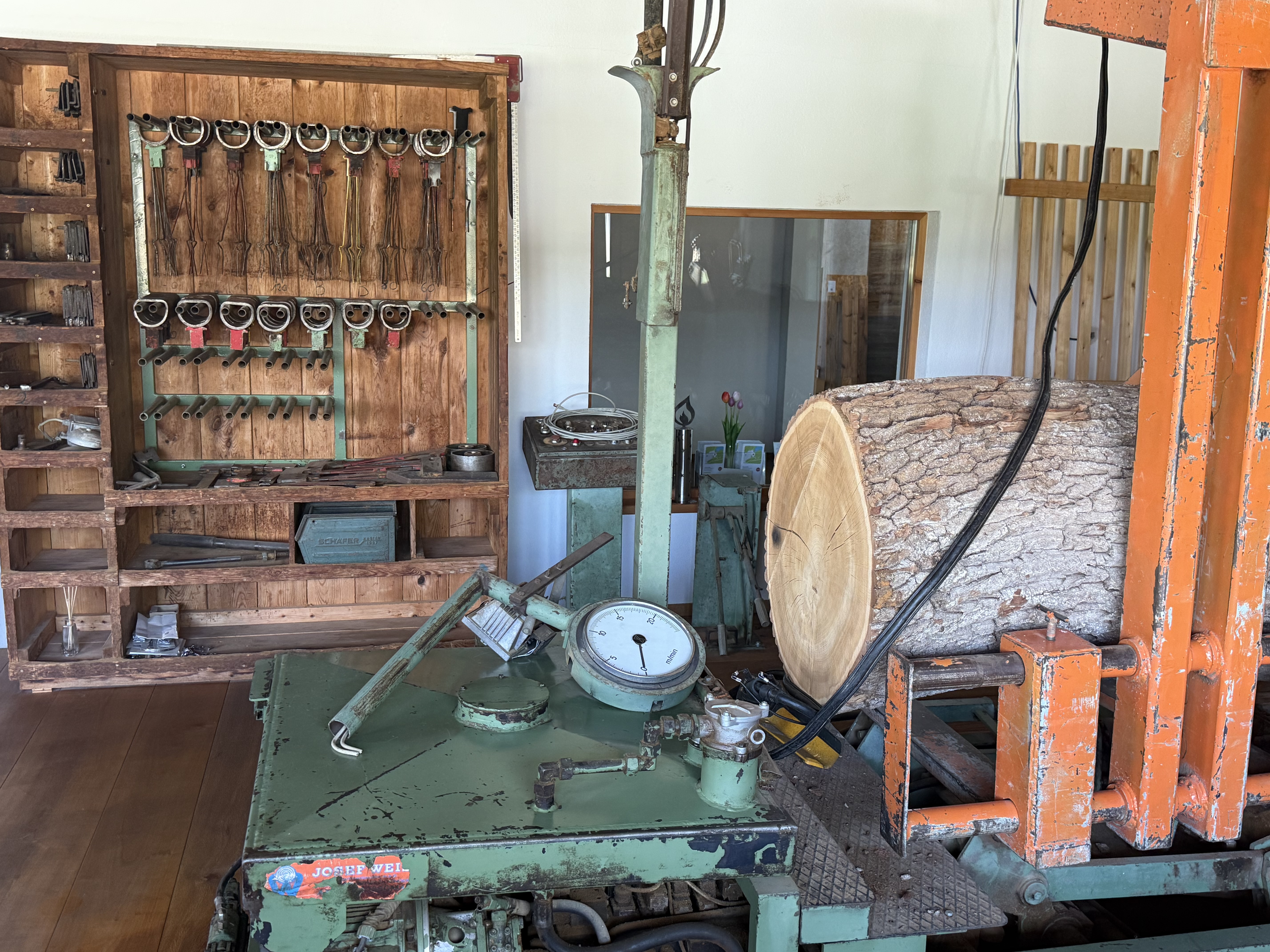

Top condition with remote-controlled clamping carriage

1. double edger / edger Paul KME II with conveyor belt

KME II, year of construction 2012 (as good as new condition)

Cutting height: 125 mm

Working width: 750 mm

Drive: 38 kW

1. complete disposal with metal detector

Chipper Rudnick & Enners TH150/500/3

With conveyor belts for material removal and processing

With metal detector for the safety and quality of the end products

1. summary

The entire line is in very good condition and can be inspected at any time. All machines are well maintained and operational.

1. inspection and contact

The machines can be viewed at any time. For further questions or to arrange a viewing appointment, please do not hesitate to contact us.
