Weinig UNIPLAN
1 / 11
Available

Weinig UNIPLAN

Planers
Price on request

Technical data

Manufacturer
Weinig
Model
Uniplan
Machine type
Planer
Year of manufacture
1992

Description

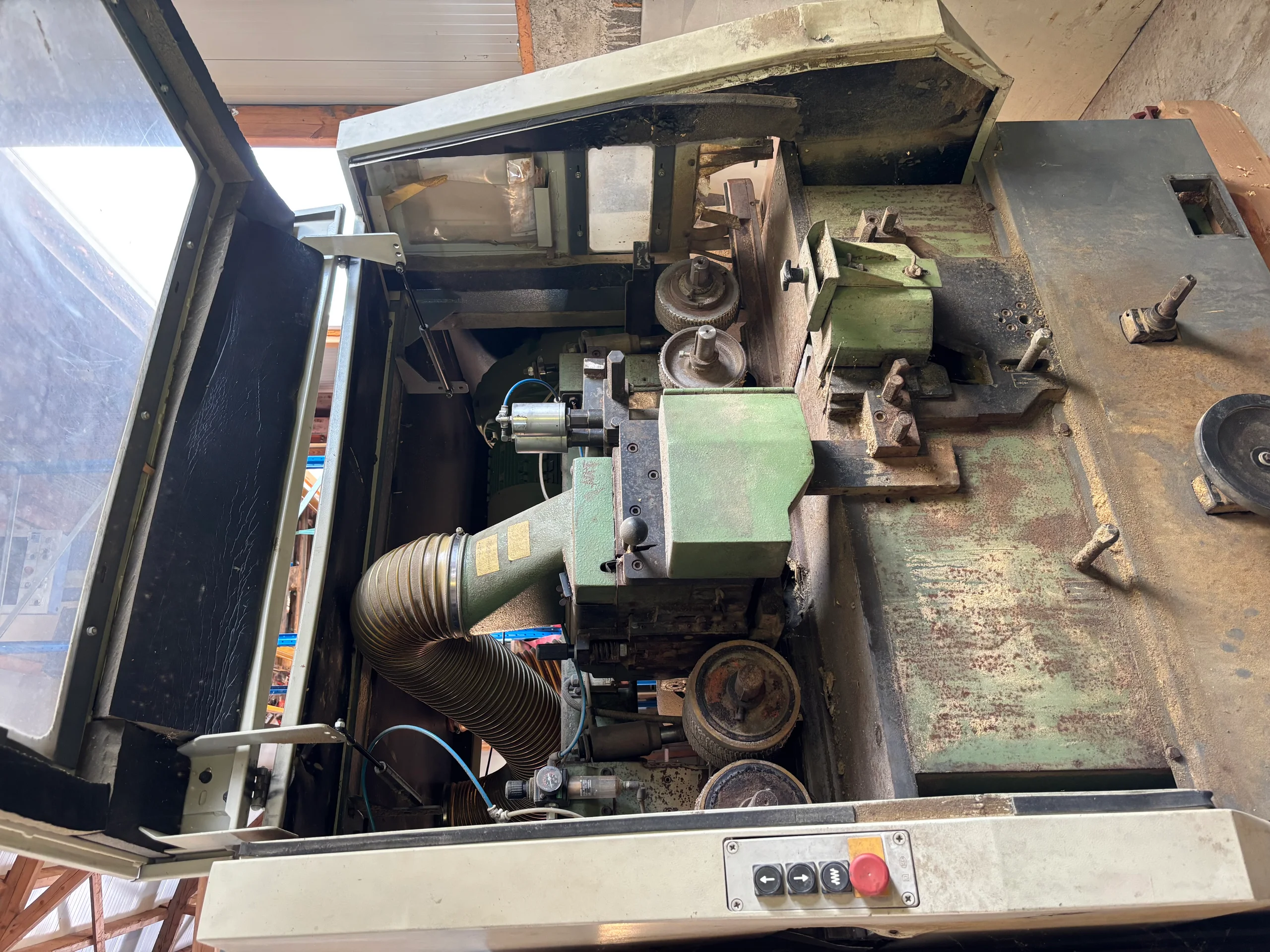

  • Machine type: Two-sided thickness planer
  • Processing: Top and bottom planing in one pass

- Planing shafts:

  • Number: 2
  • Arrangement: 1 × top, 1 × bottom
  • Construction: solid steel planing shafts
  • Cutter system: conventional cutterblock

- Pressure system:

  • Pneumatic
  • Pressure cylinders on the units
  • Working width: approx. 400-600 mm
  • Workpiece height: approx. 6-160 mm
  • Max. Total chip removal: approx. 6-10 mm

- Feed system:

  • Mechanical feed

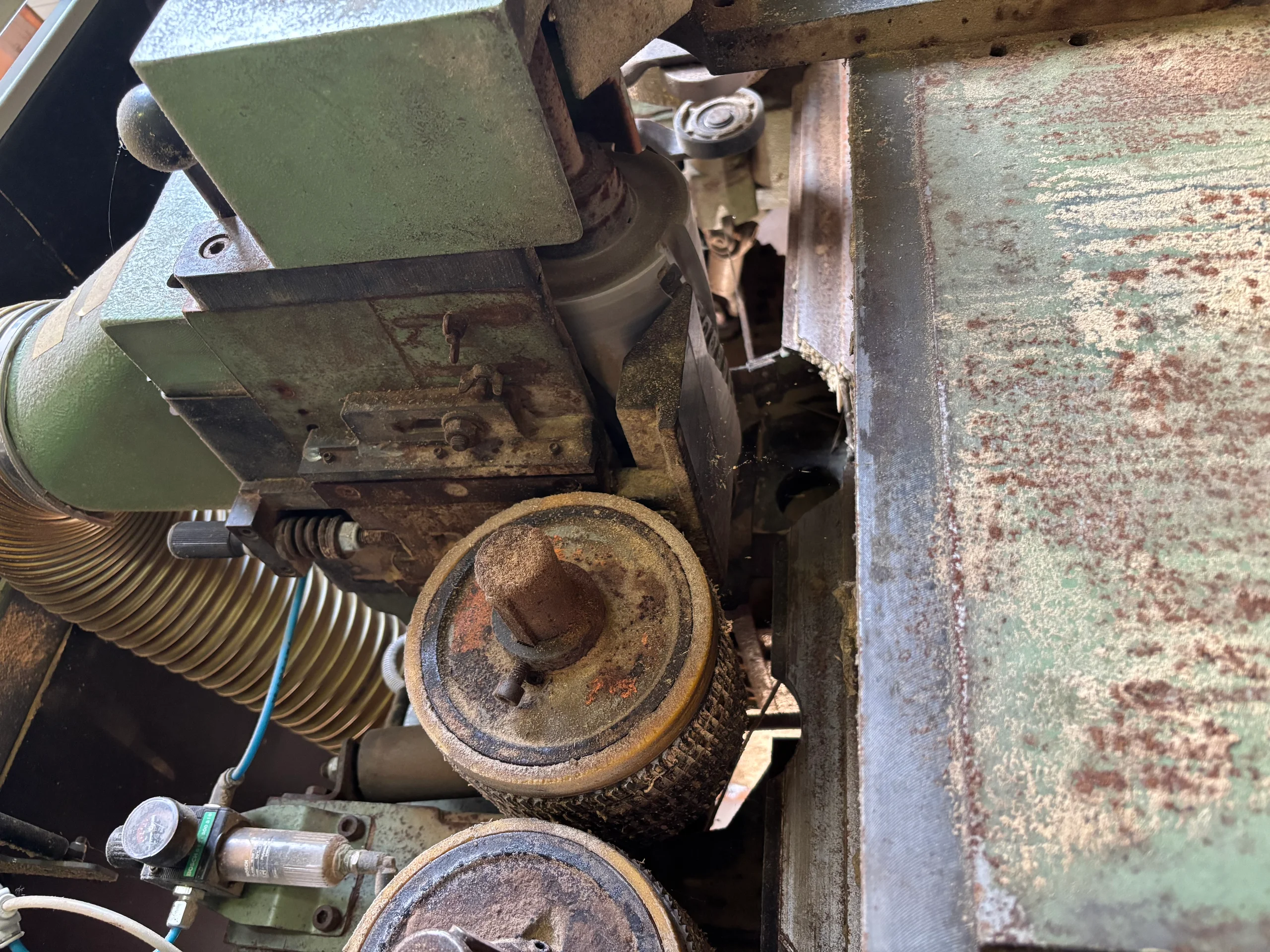

  • Toothed infeed roller
  • Smooth/rubberized outfeed rollers
  • Feed speed: approx. 6-24 m/min

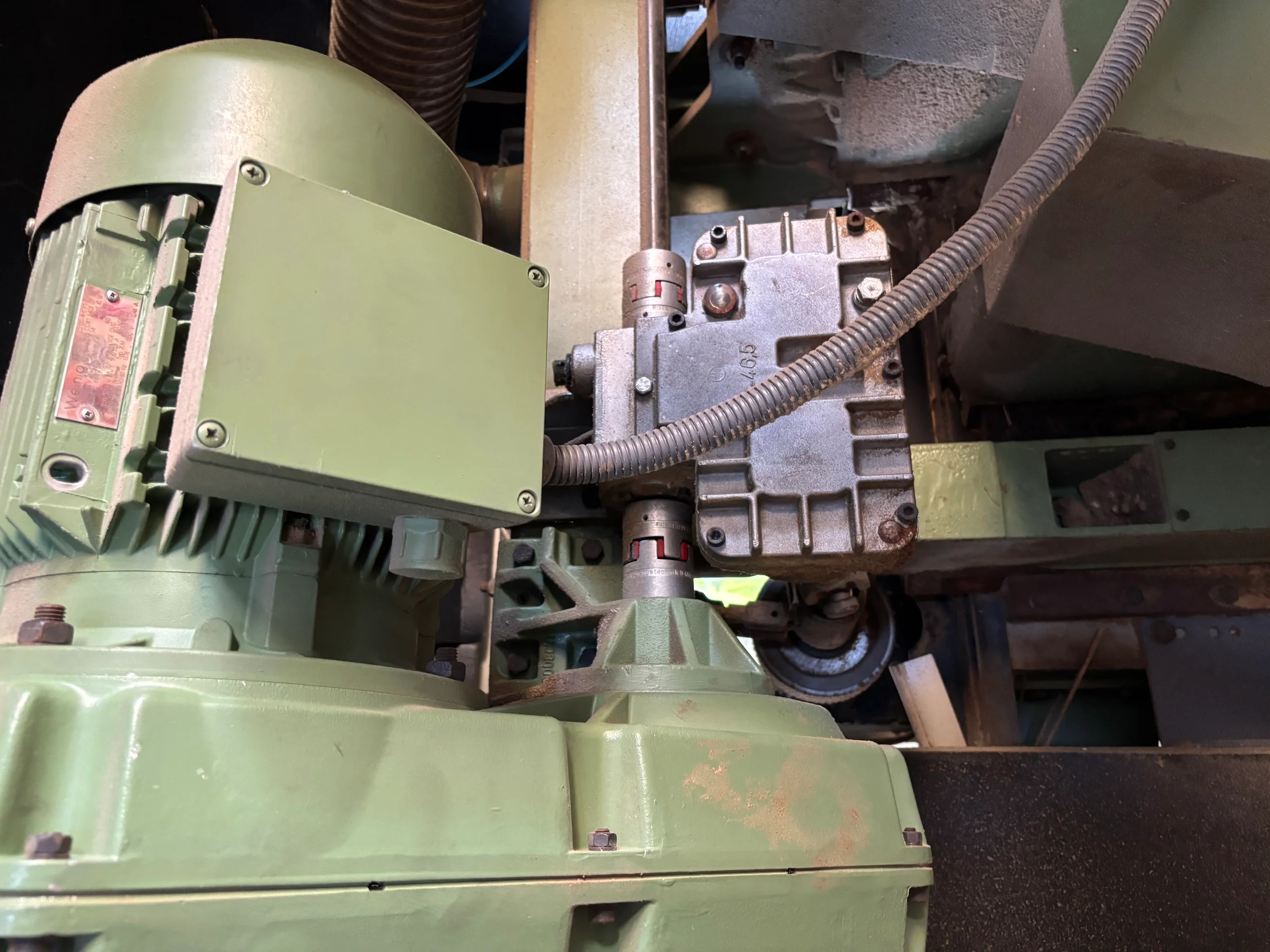

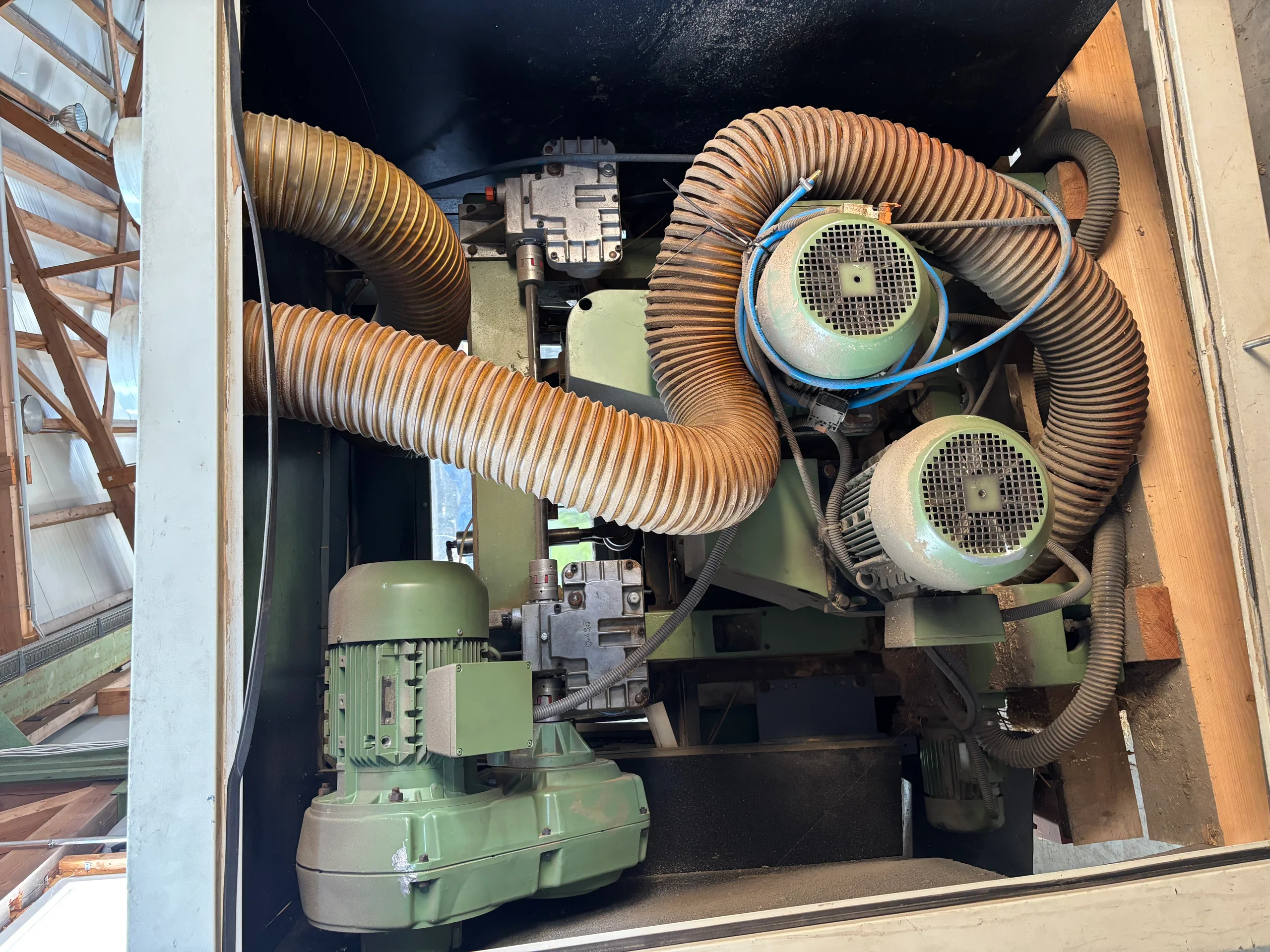

- Drives:

  • Number of motors: at least 3
  • 1 × upper planing shaft
  • 1 × lower planing shaft
  • 1 × feed

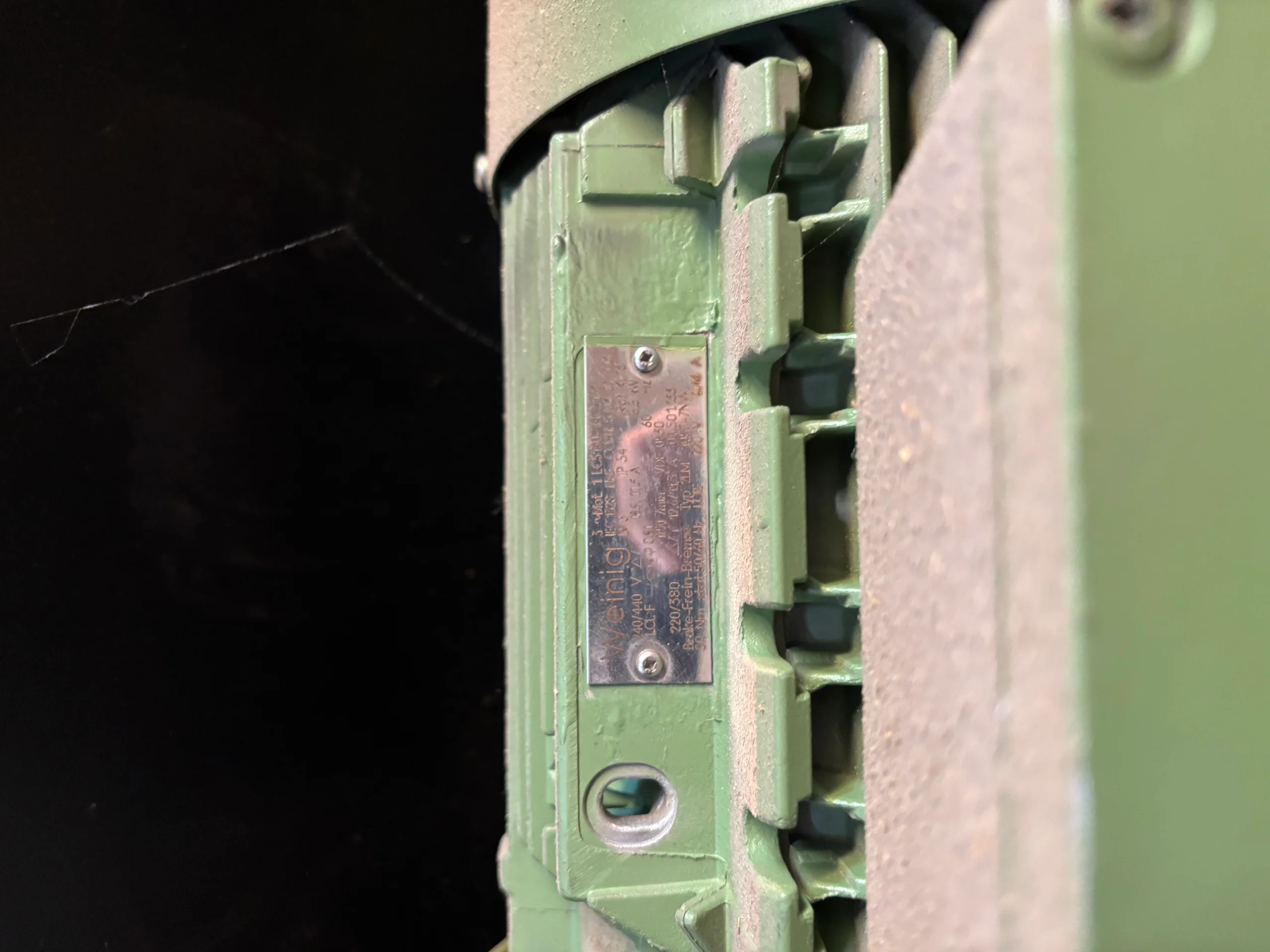

  • Motor type: Three-phase asynchronous motors
  • Operating voltage: 220/380 V or 380/400 V

- Motor power (typical):

  • Upper planing shaft: approx. 7.5-11 kW
  • Lower planing shaft: approx. 5.5-7.5 kW
  • Feed: approx. 1-2.2 kW

- Extraction:

  • Multiple extraction connections
  • Separate top and bottom extraction

- Machine construction:

  • Heavy cast iron/steel bed
  • Solid planing table
  • Control: Electromechanical
  • Pneumatics: available
