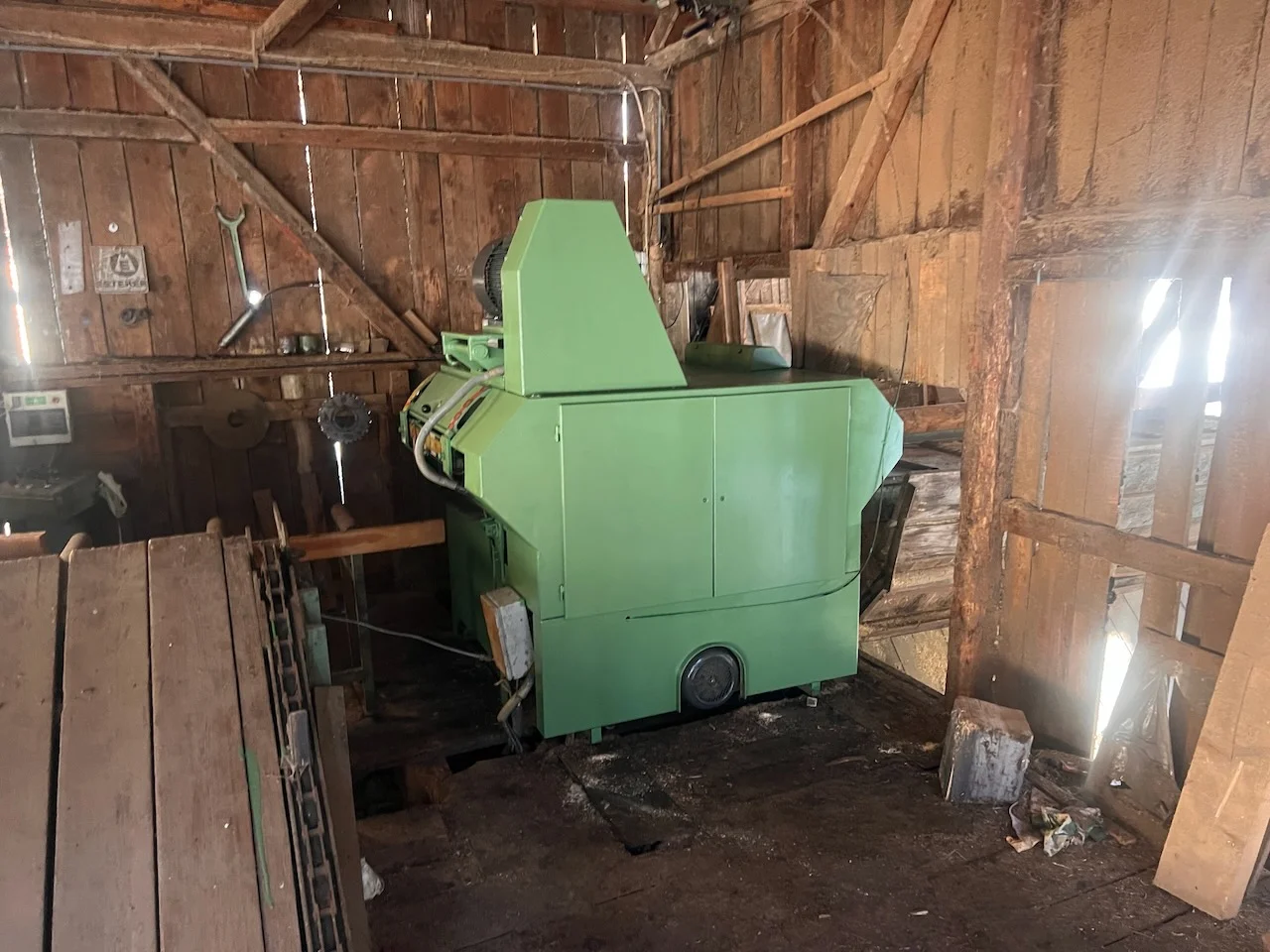

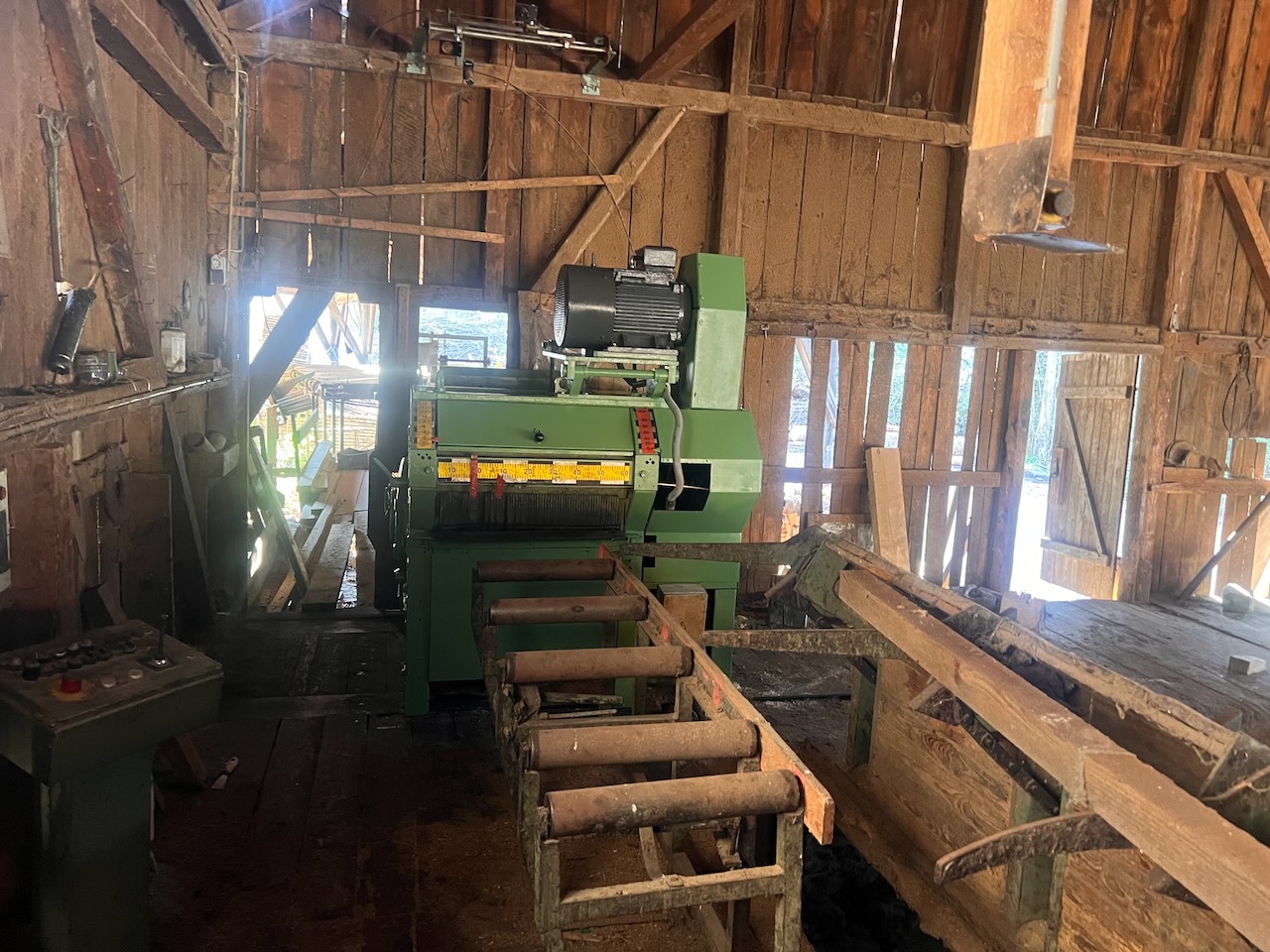

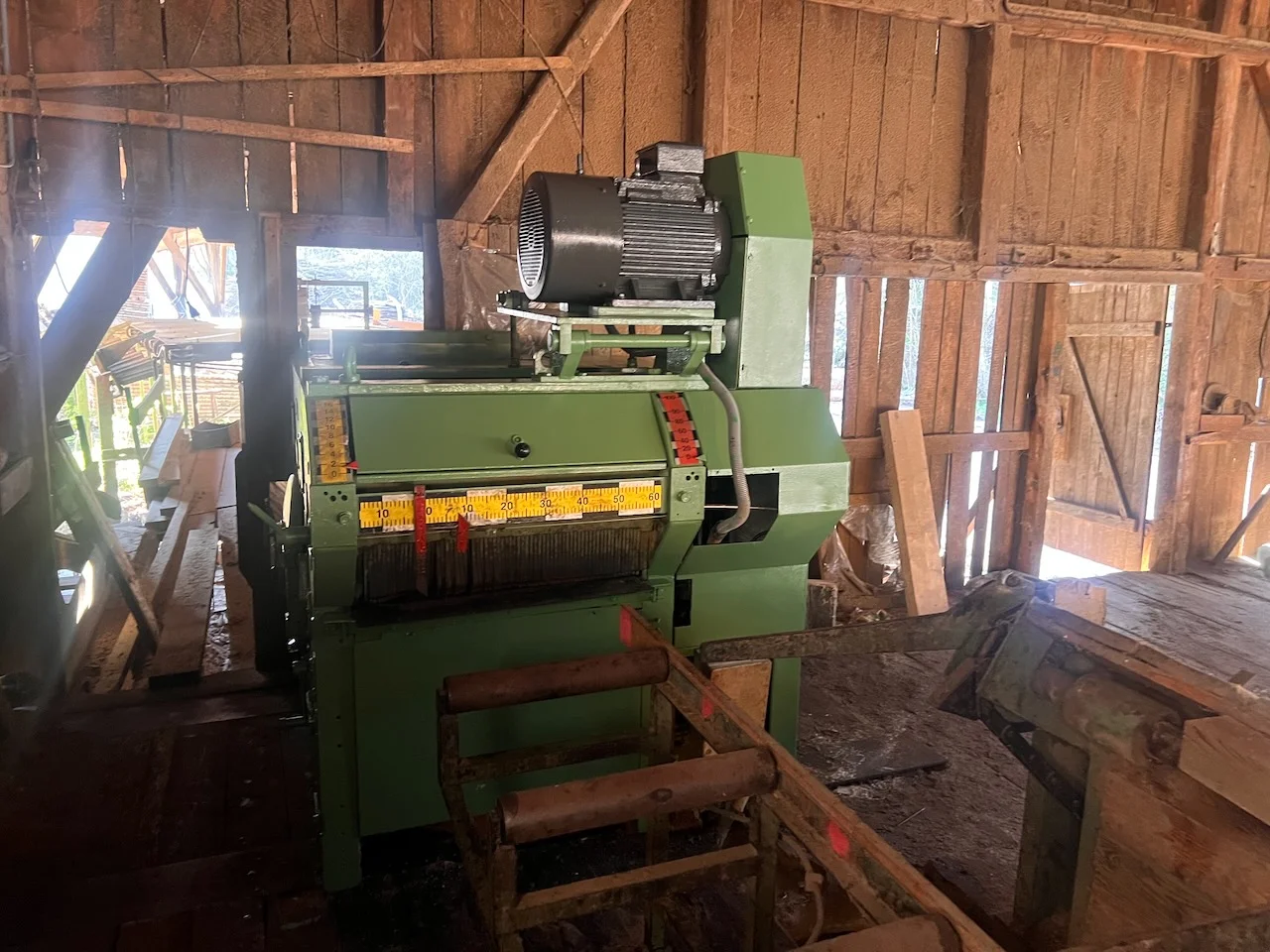

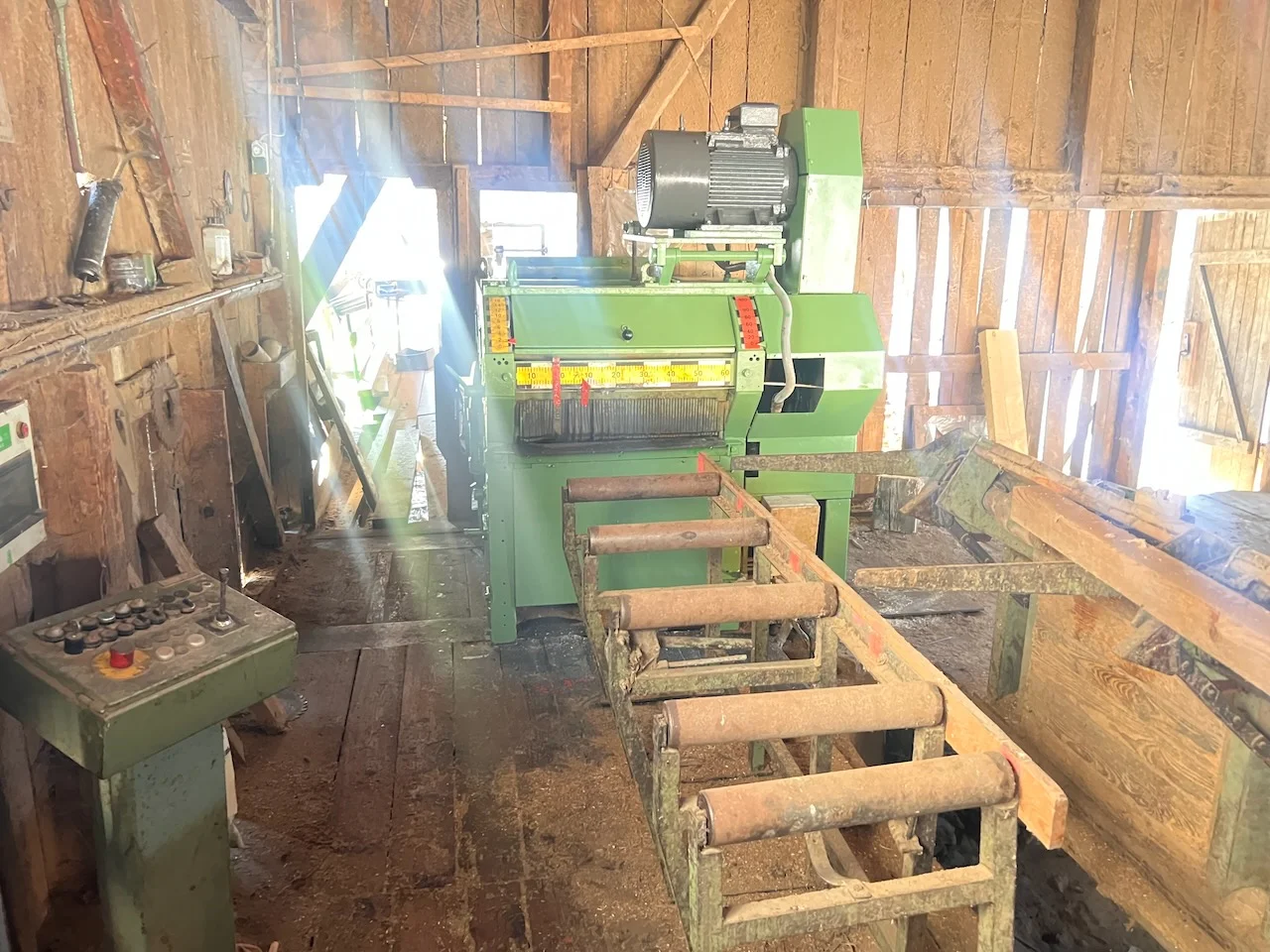

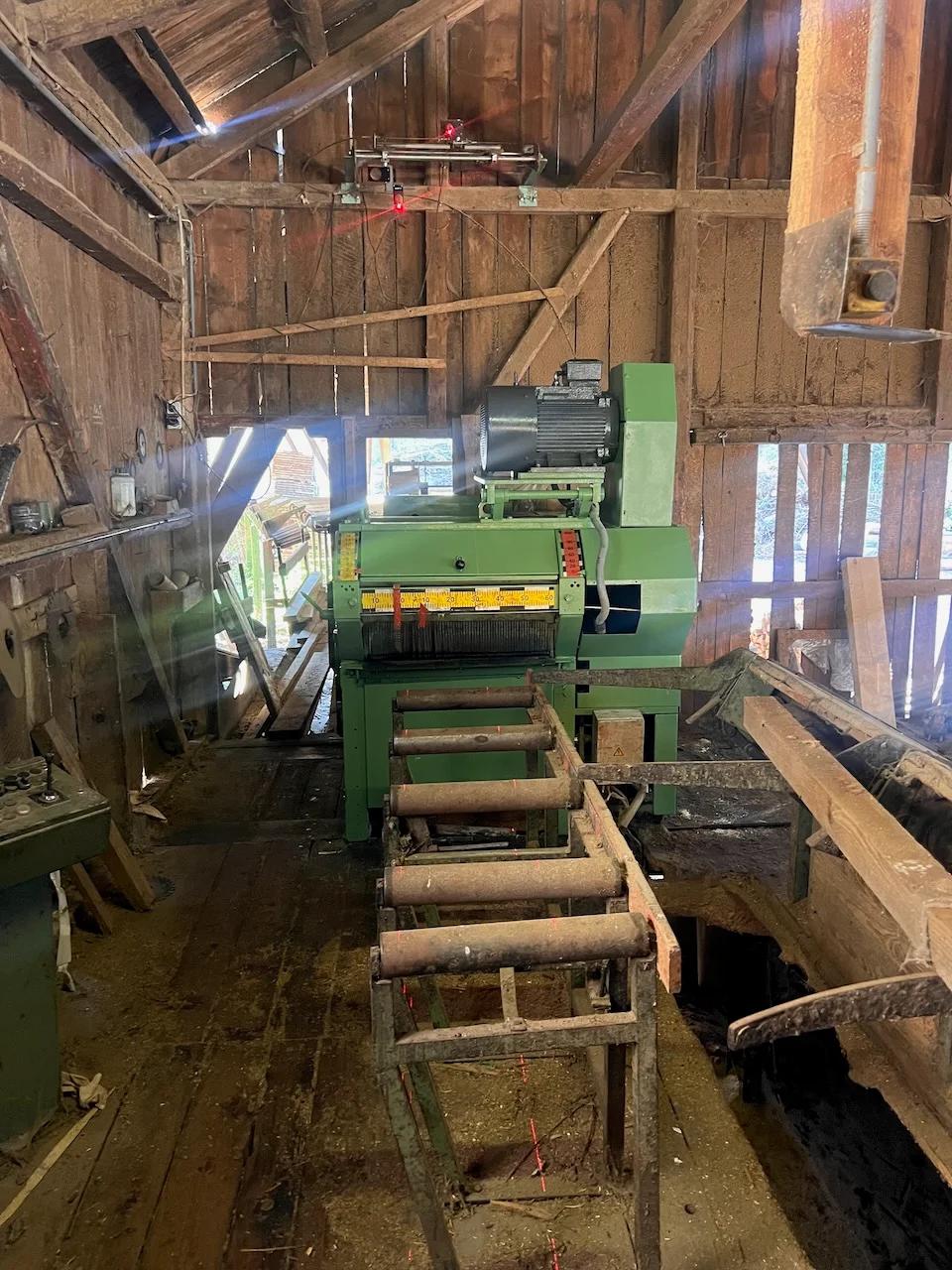

Trimming and resawing saw

Trimming circular saws

EWD trimming and resawing circular saw DKV separator, sorting boxes etc.

The DKV with bottom-mounted saw shaft with 1 variable saw flange.

Various lath bushes,

Double-lamellar riving knife

The saw flanges are positioned hydraulically.

Freely programmable...

Technical data:

Saw shaft drive

Feed drive 7,5kW

Weight approx. 4000kg

Wood length 1-6m

Rough timber width 80-750mm

Timber finished dimensions 24-500mm

Wood thickness* 15-120mm

*Special version up to 160 mm

Saw blade diameter max. 500mm.

Saw blade speed 3000 1/min.

Saw shaft diameter 70mm
