Log yard

Used log yard Springer for long and short logs

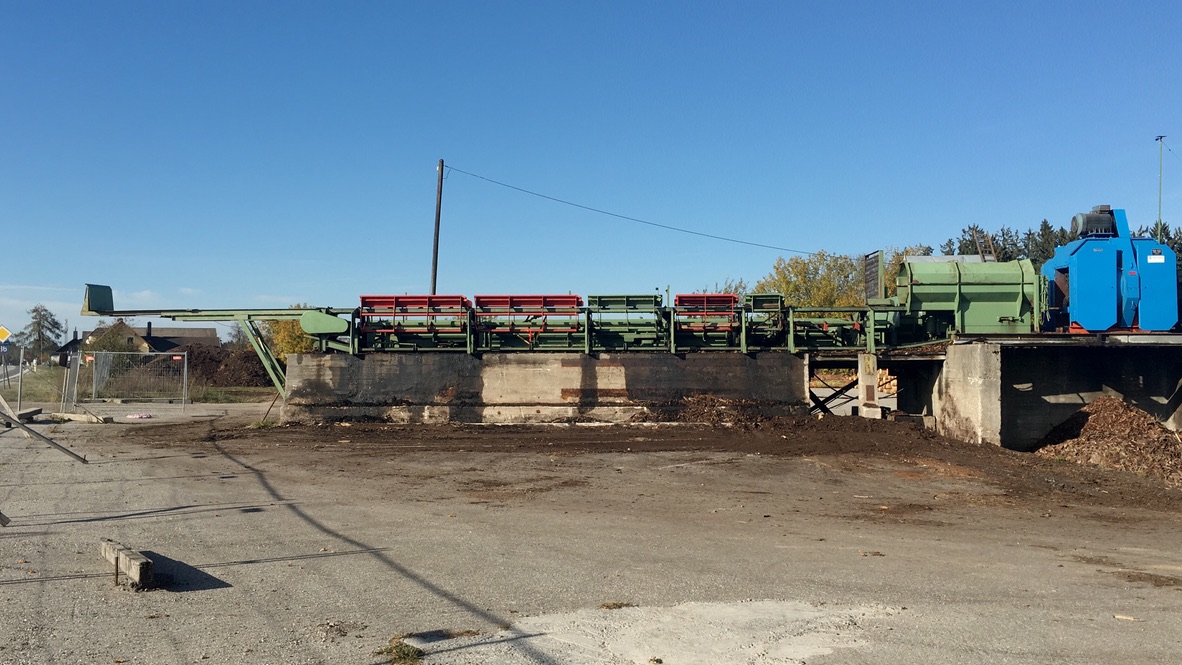

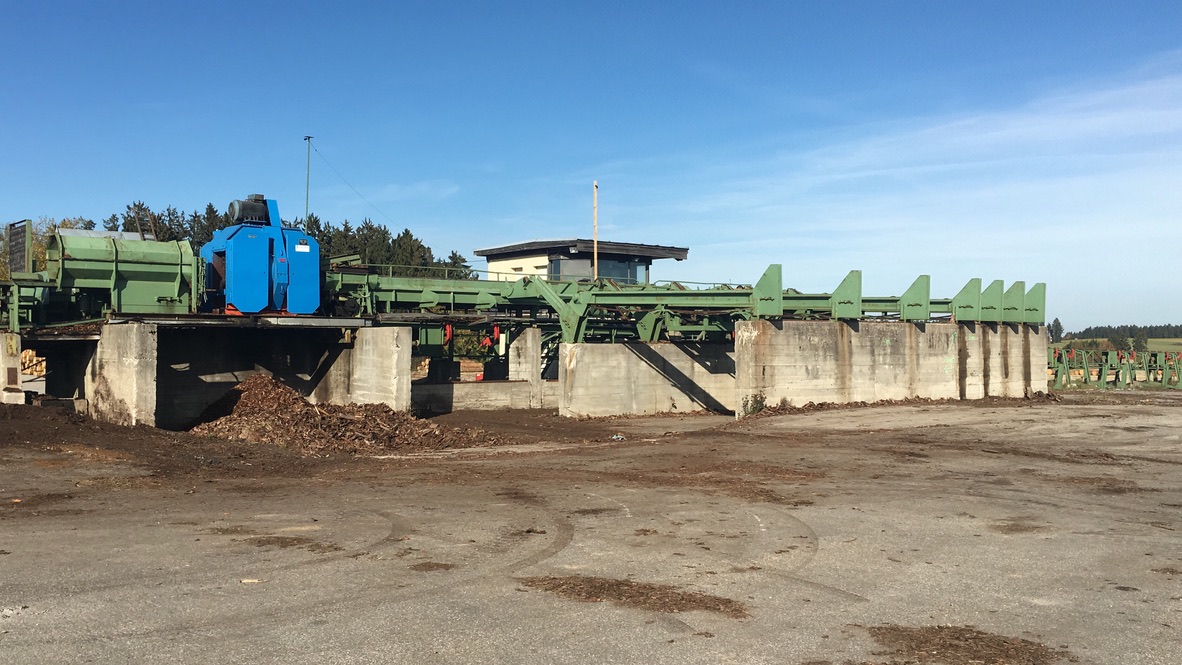

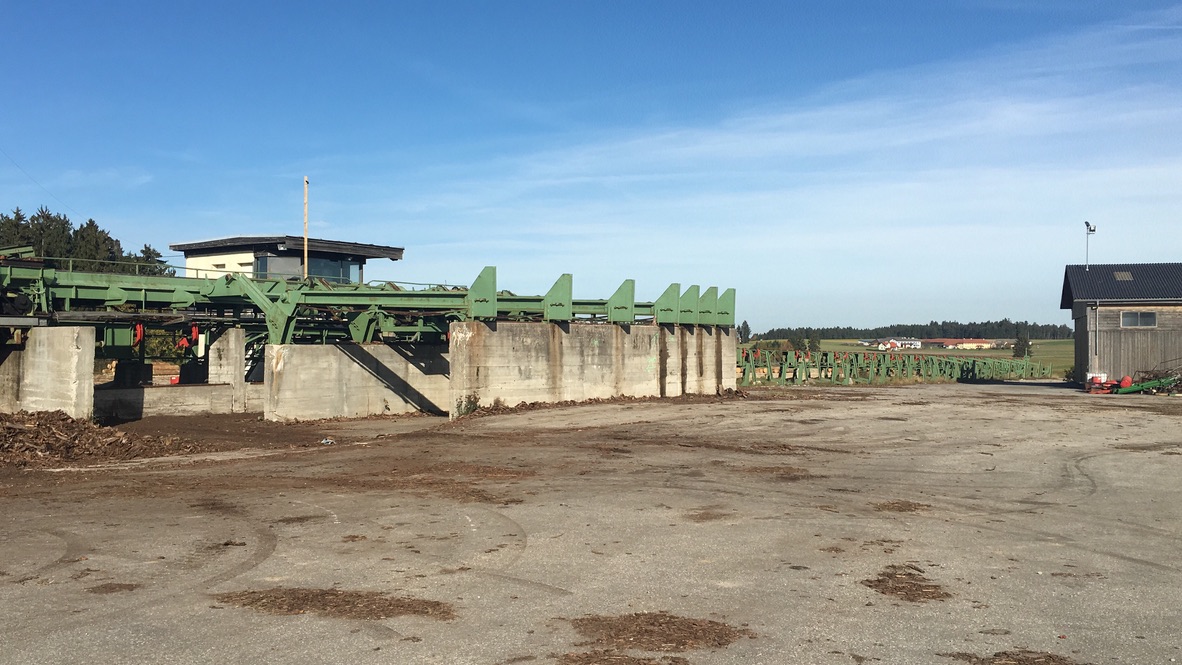

This used log yard system from Springer is a fully equipped solution for processing long and short logs.

The system combines robust conveyor technology, precise measuring systems and a powerful Nicholson A6 debarking machine.

It was developed for continuous industrial operation and is ideal for sawmills, wood processing plants and biomass plants.

⸻

Technical description

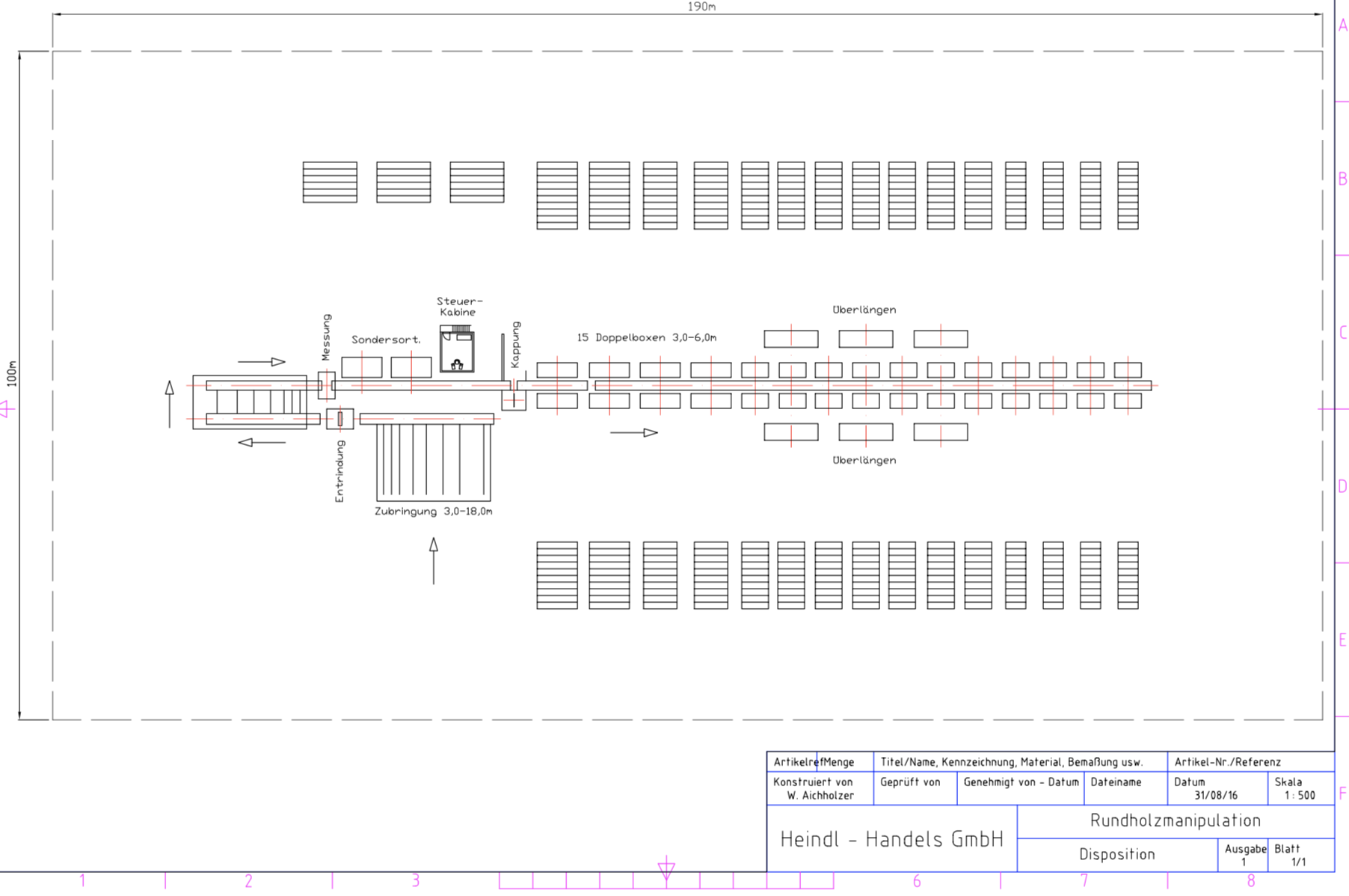

Log yard jumper for long and short logs, consisting of:

Feeding and infeed

• Feeding cross conveyor, 4-beam, center distance (AA) = 7,000 mm, beam thickness 160 mm
• Feeding cross conveyor for short timber, 3-beam
• Separating cross conveyor
• Log feeder, two-part

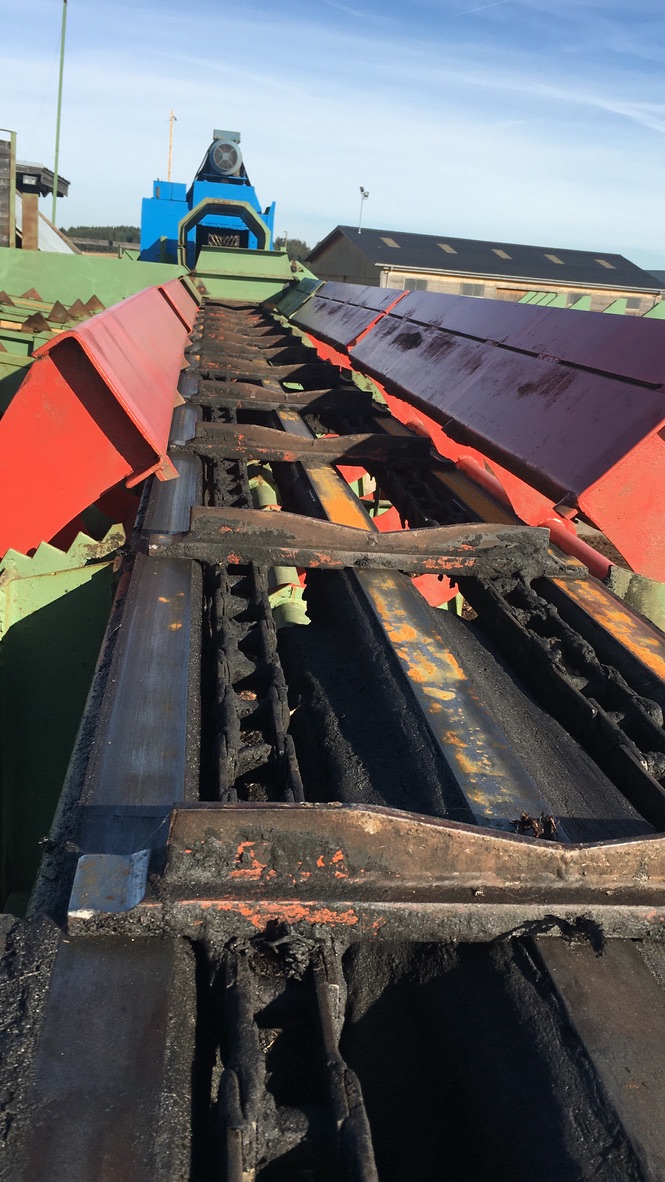

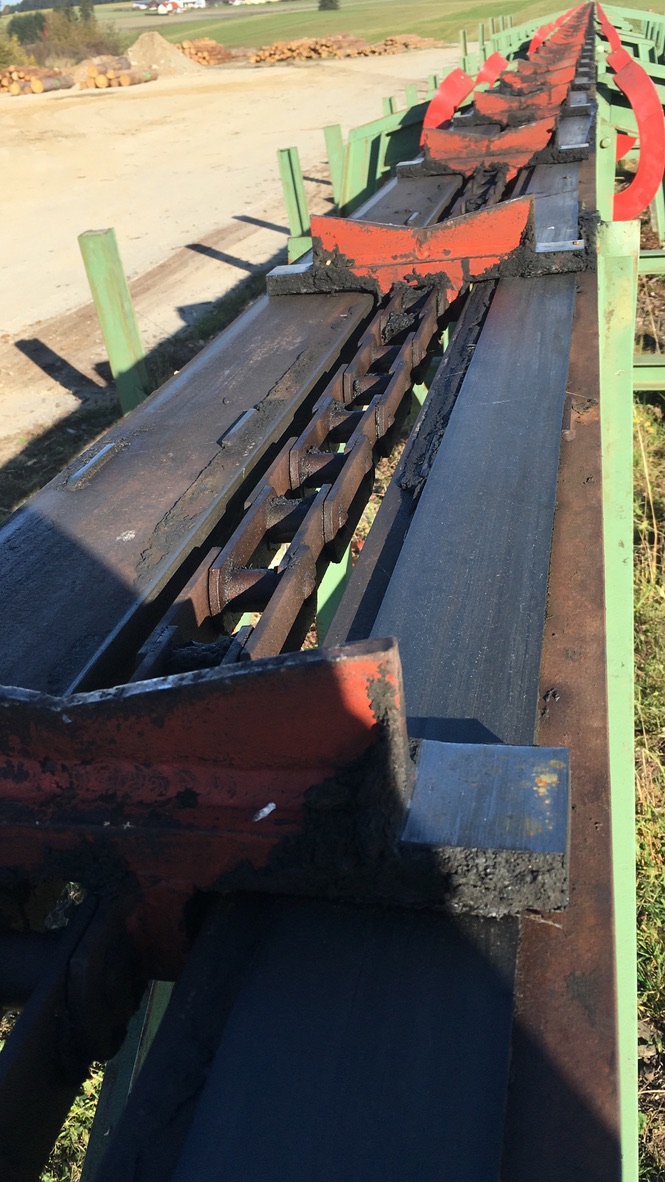

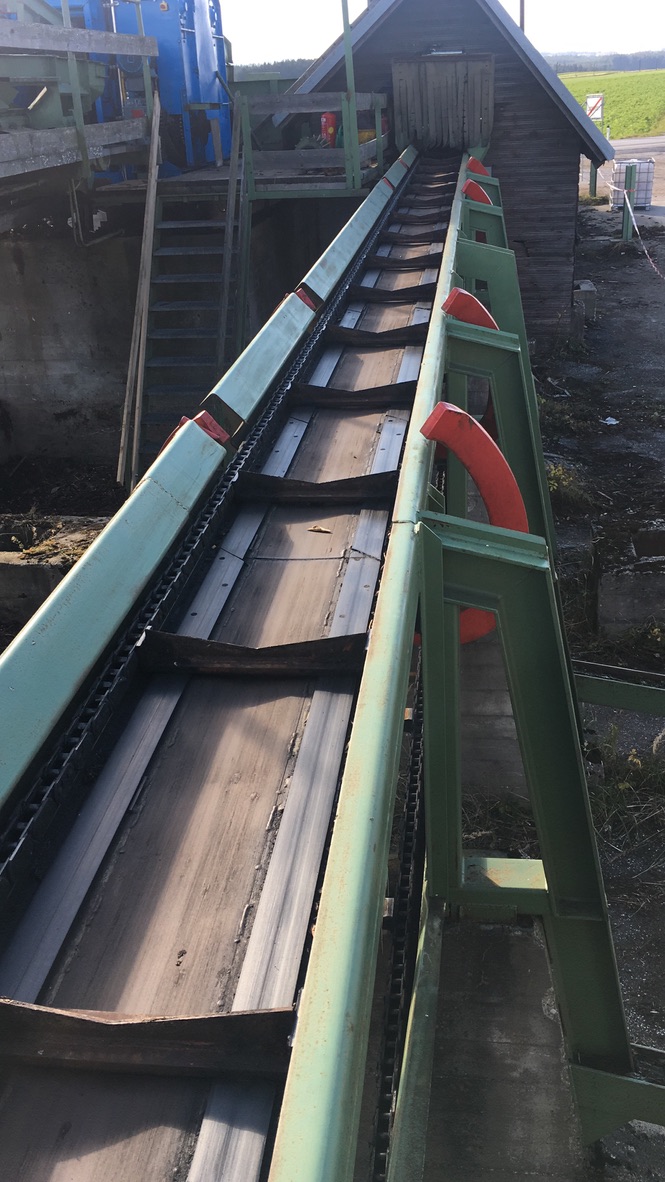

• Infeed for debarking with longitudinal chain conveyor, AA = 20,000 mm
• Log collecting device with support and centering roller in front of the debarking machine

Debarking machine

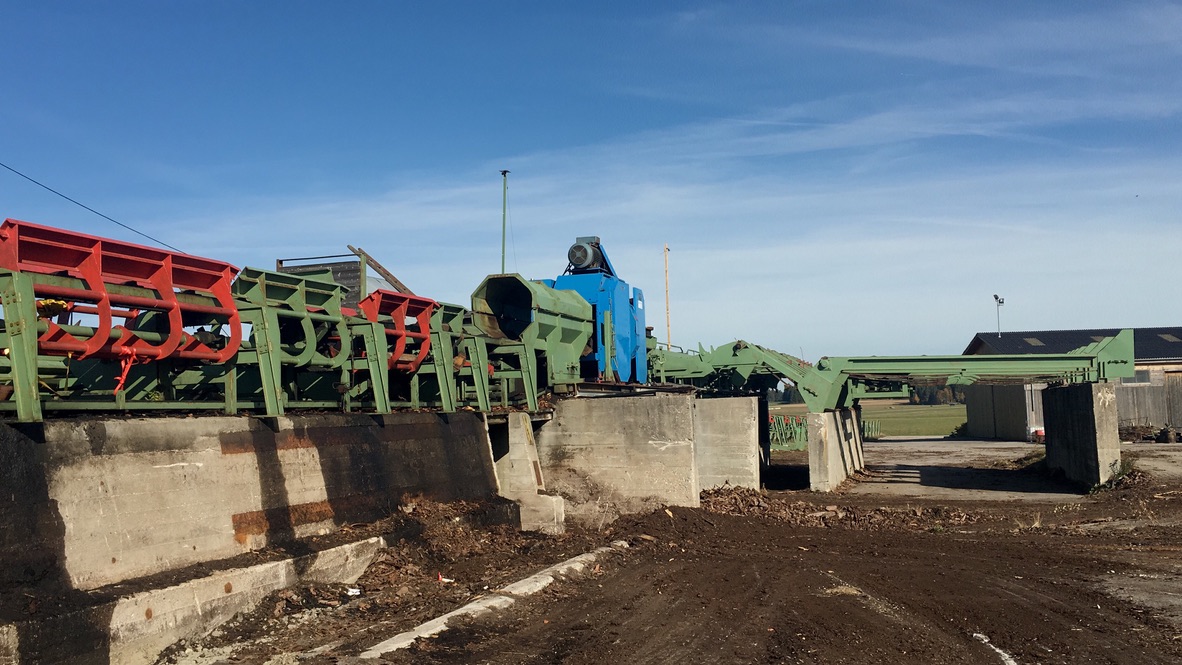

• Rotor-centered debarking machine make Nicholson, type A6
• Feed diameter: approx. 100 - 900 mm
• Main drive: 46 kW
• Centering device electric, hydraulic and pneumatic
• Hydraulic unit: 15 kW

Extraction and sorting

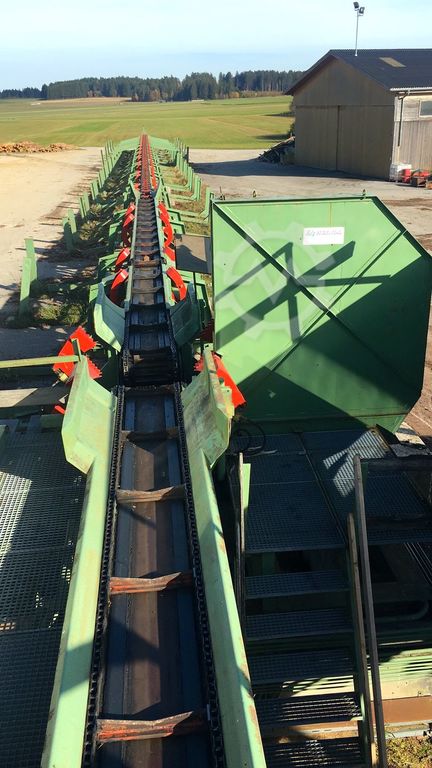

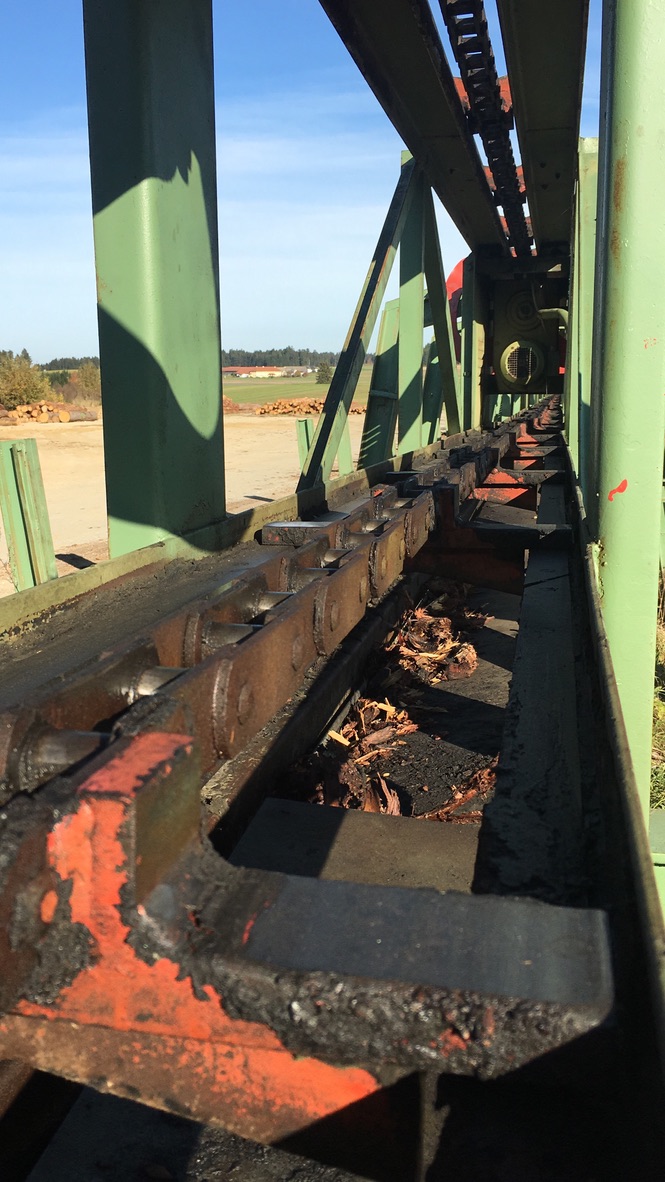

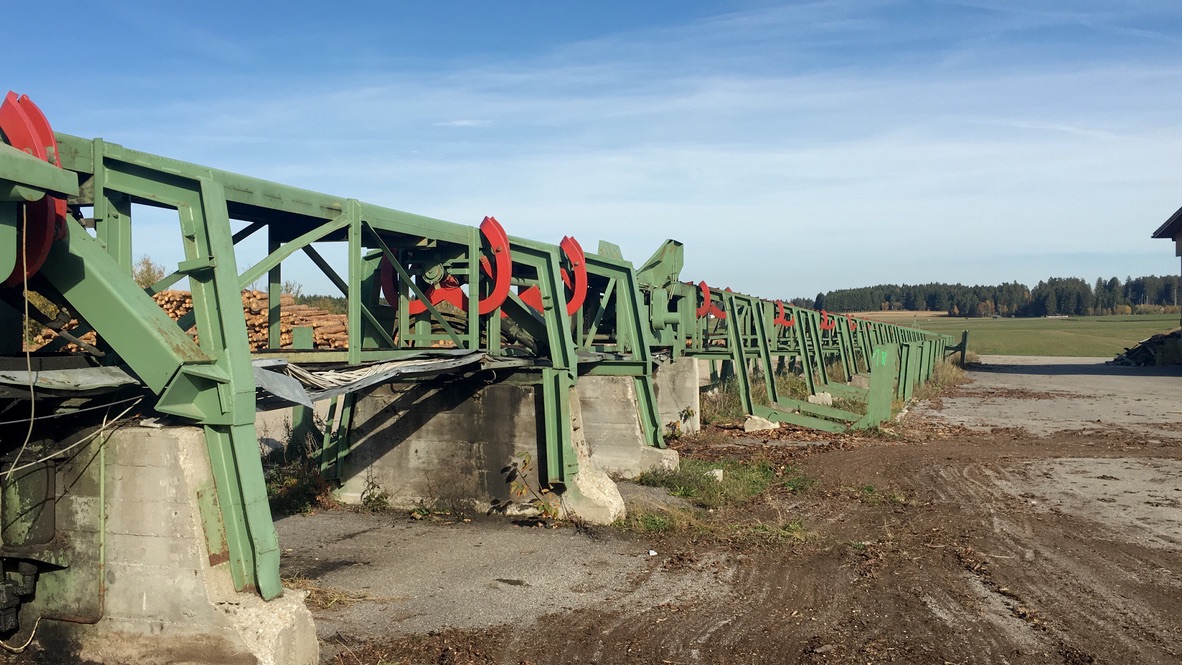

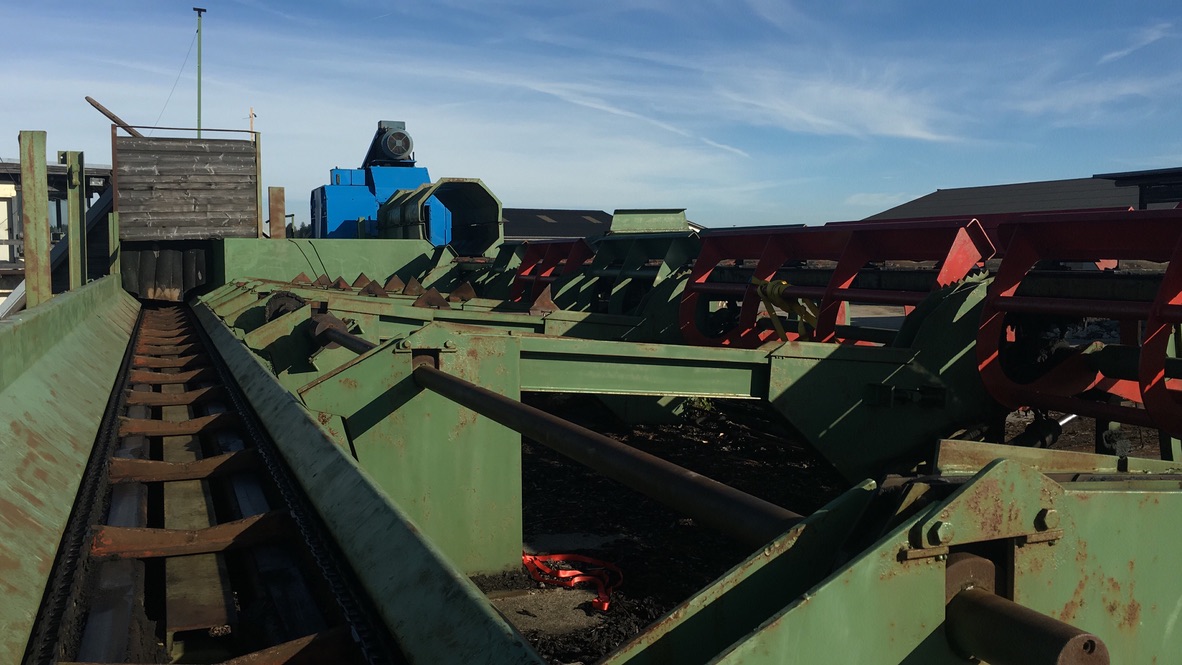

• Longitudinal chain conveyor after debarking, AA = 17,000 mm, with sliding roller on both sides and 2 unboxers

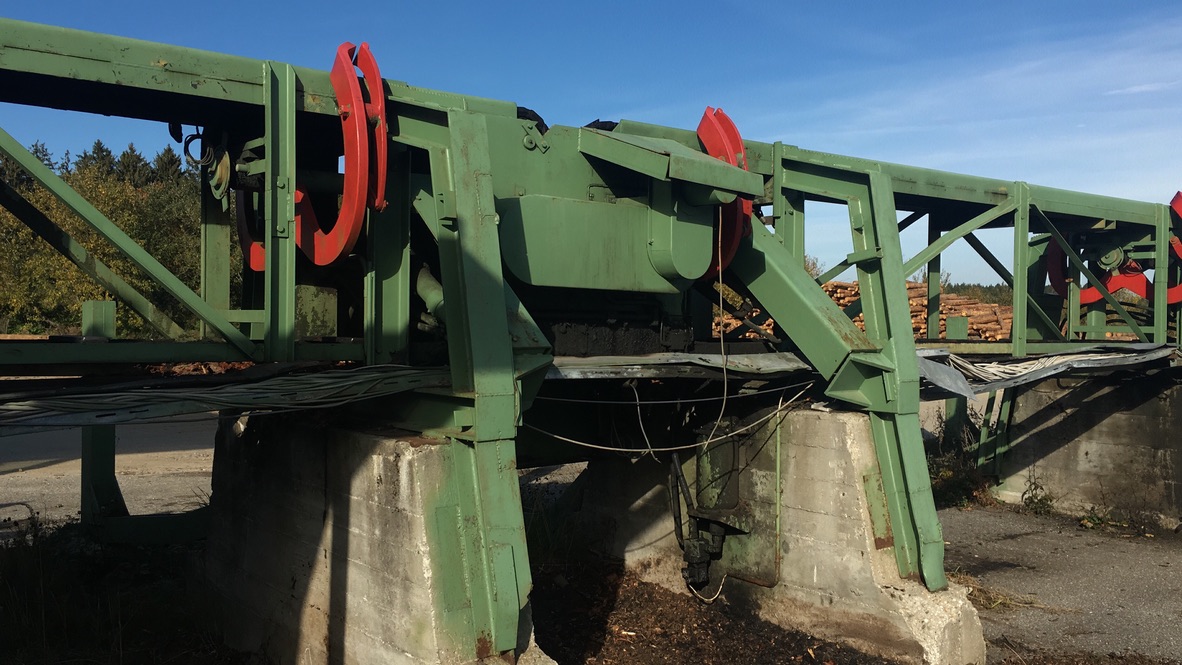

• Cross transport device, 7-beam

- Measuring and cross-cut system consisting of:

• AA = 16,000 mm longitudinal chain conveyor
• Bloch collecting device and measuring station with weather protection cladding
• AA longitudinal chain conveyor = 25,000 mm, 2 unboxers
• Clamping device for logs
• Cross-cut section with circular saw, blade diameter 2,000 mm
• AA longitudinal chain conveyor = 5,500 mm
• Clamping device after the cross-cut saw
• Longitudinal chain conveyor AA = 9,000 mm

Sorting system

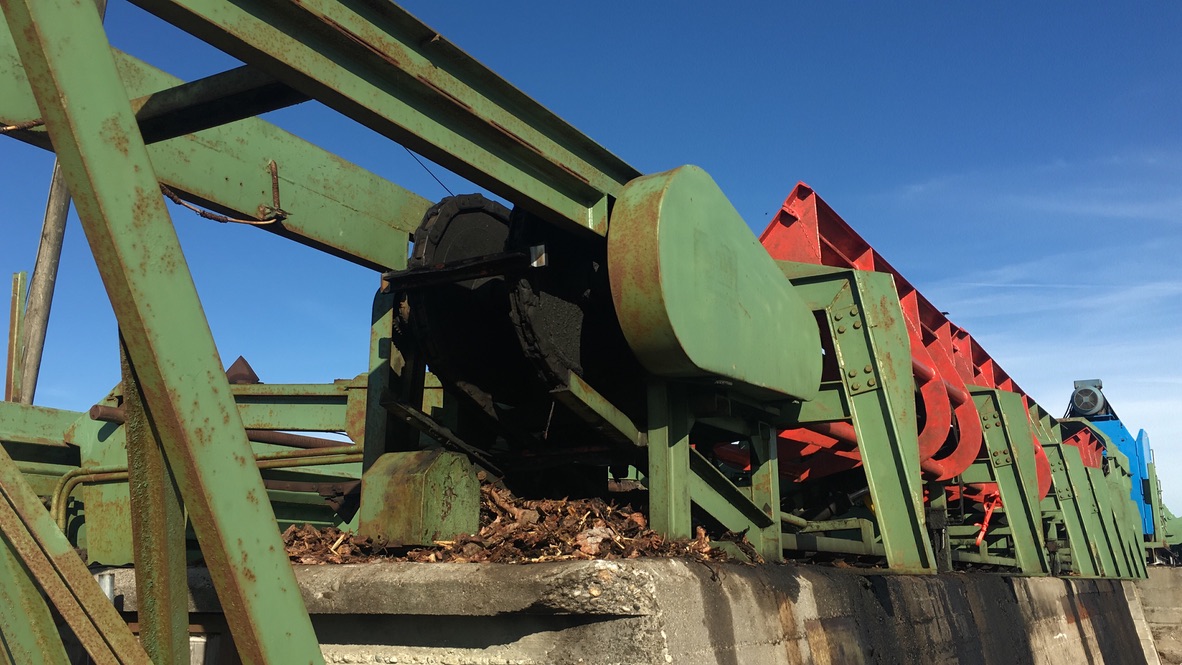

• Round timber sorting point hoist, AA = 6,000 mm
• Log collecting device and bridging unit for long logs

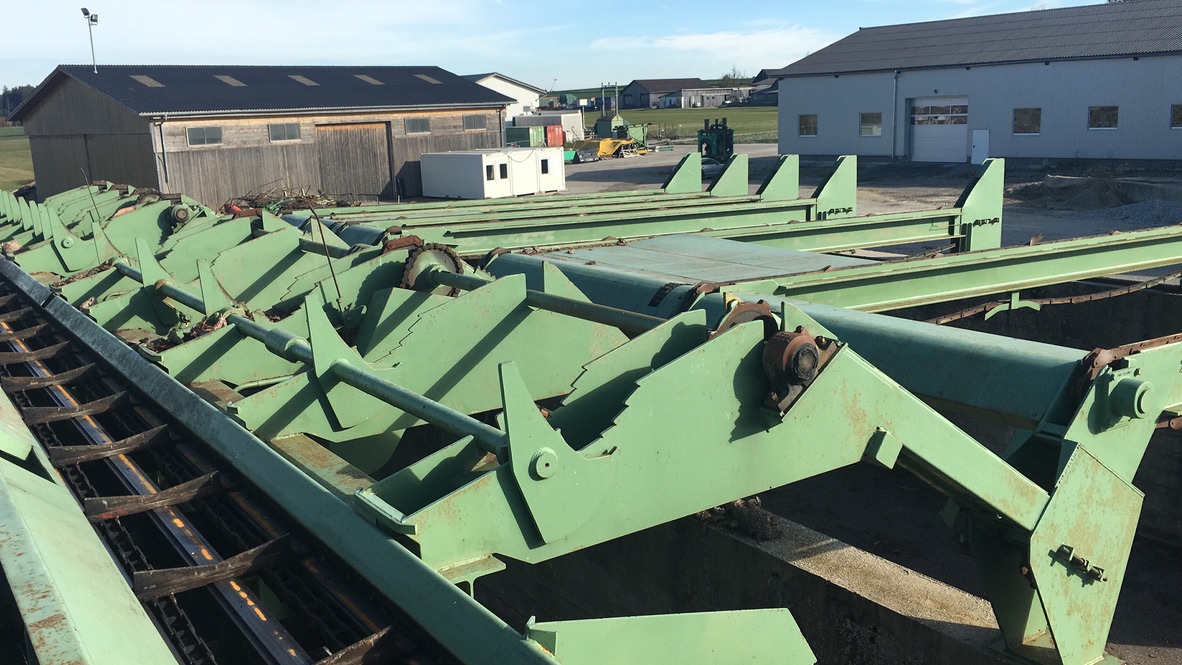

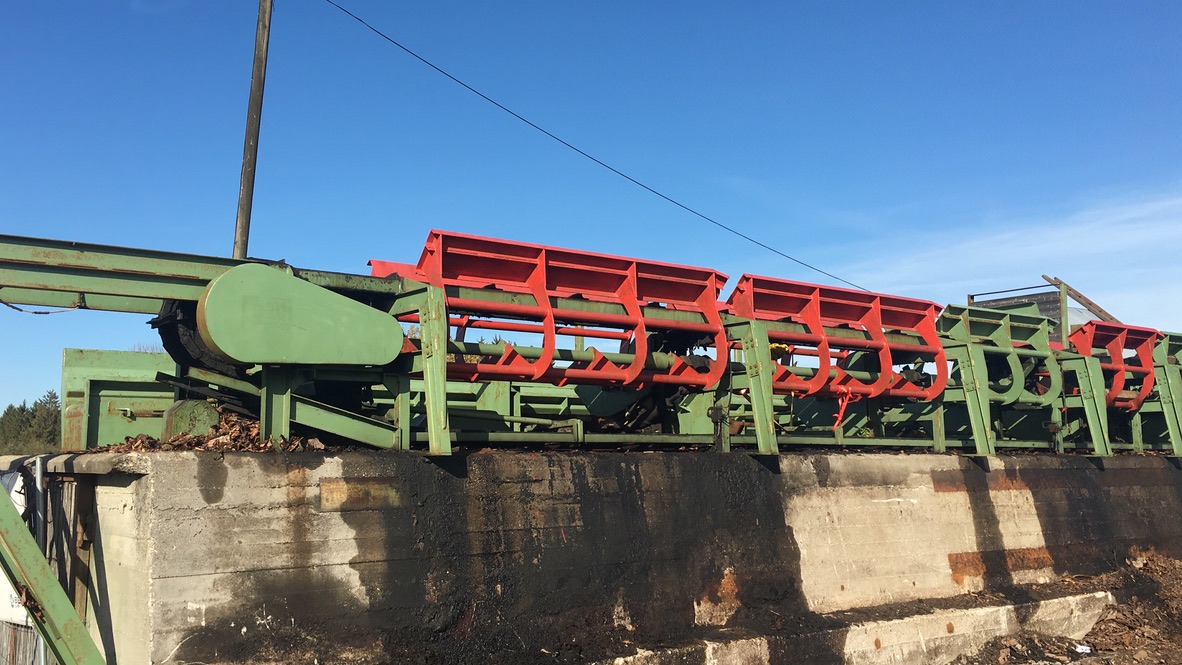

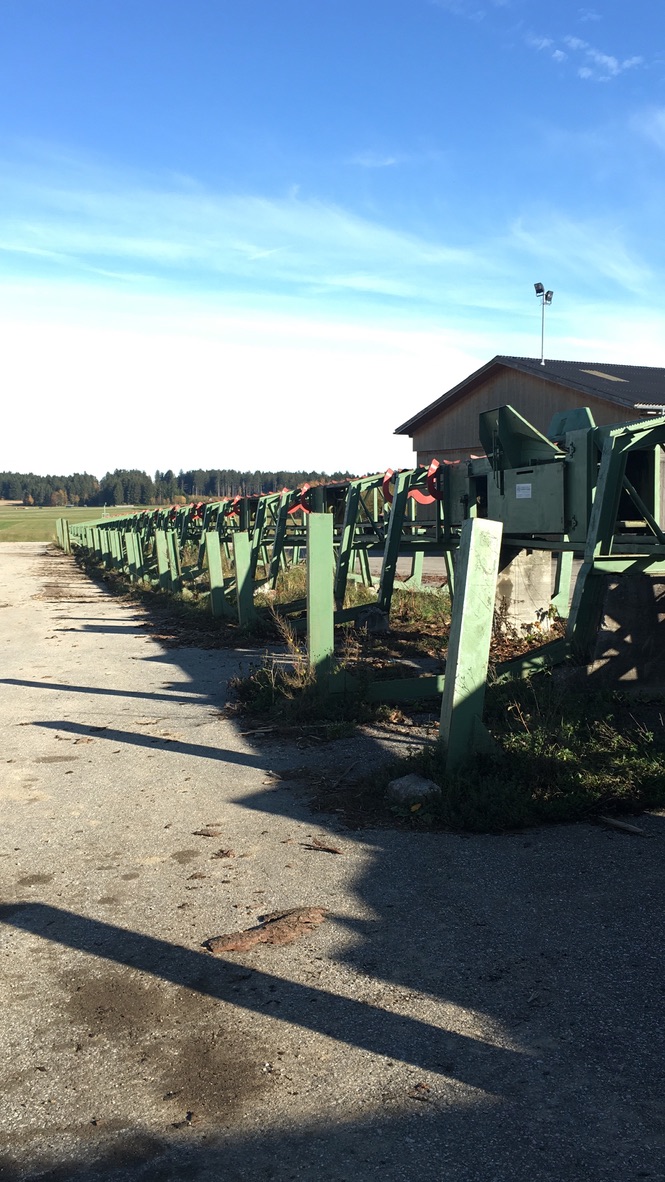

• Unboxer for 38 boxes (4 of which are double-occupied)

Hydraulics and control system

• Central hydraulic system with drive elements, piping and complete central lubrication system (Neuson)
• Automatic 2-line high-pressure lubrication system for all slideways and carrier chains

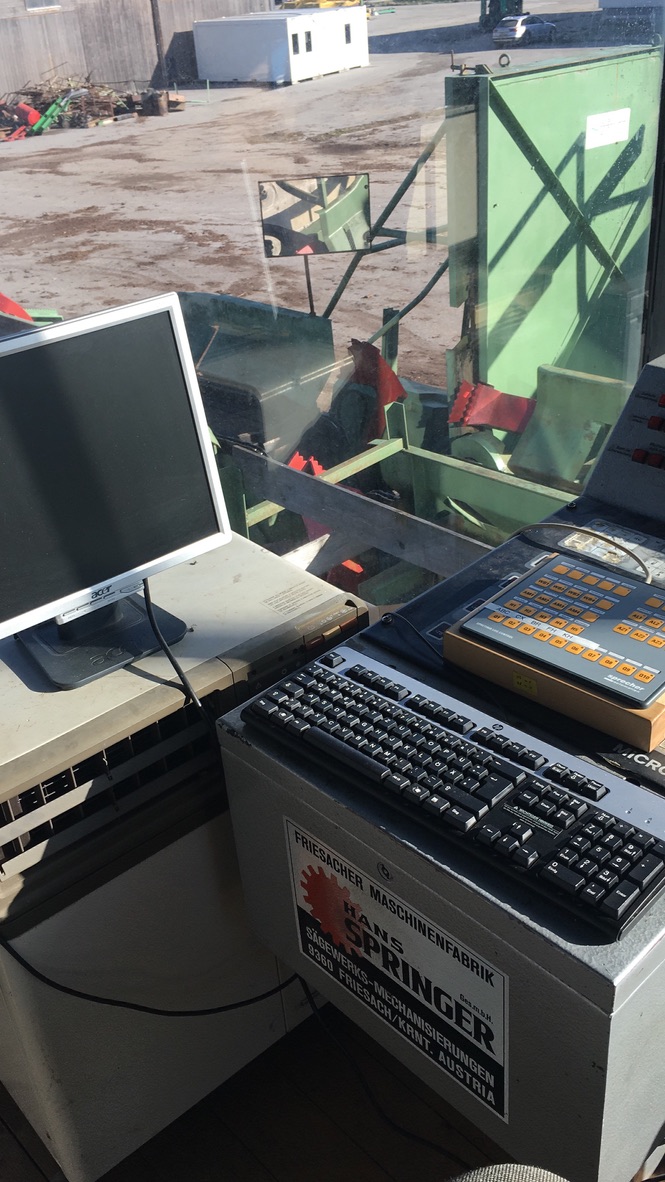

• Conventional and electronic control system, fully wired and cabled
• Pneumatic and hydraulic equipment completely available
• SPRECHER 2D measuring system (as good as new)

⸻

Advantages of the system

• Complete solution for long and short timber processing
• Robust industrial design with proven Nicholson A6 debarker
• Precise measurement and sorting
• Automatic lubrication and reliable control
• Immediately ready for operation, with complete technical equipment
• Ideal for sawmills, wood processors and biomass plants
