Rudnick & Enners RE-TH 250/700/5

COMPLETE RUDNICK & ENNERS WOOD DISPOSAL LINE - Year of construction 2011

A complete Rudnick & Enners residual wood disposal line, built in 2011, is for sale. The line consists of 20 positions and was used for the automatic removal, sorting and processing of slabs, chips and residual wood in a sawmill. The line is modular, dismantled, in very good condition and immediately available.

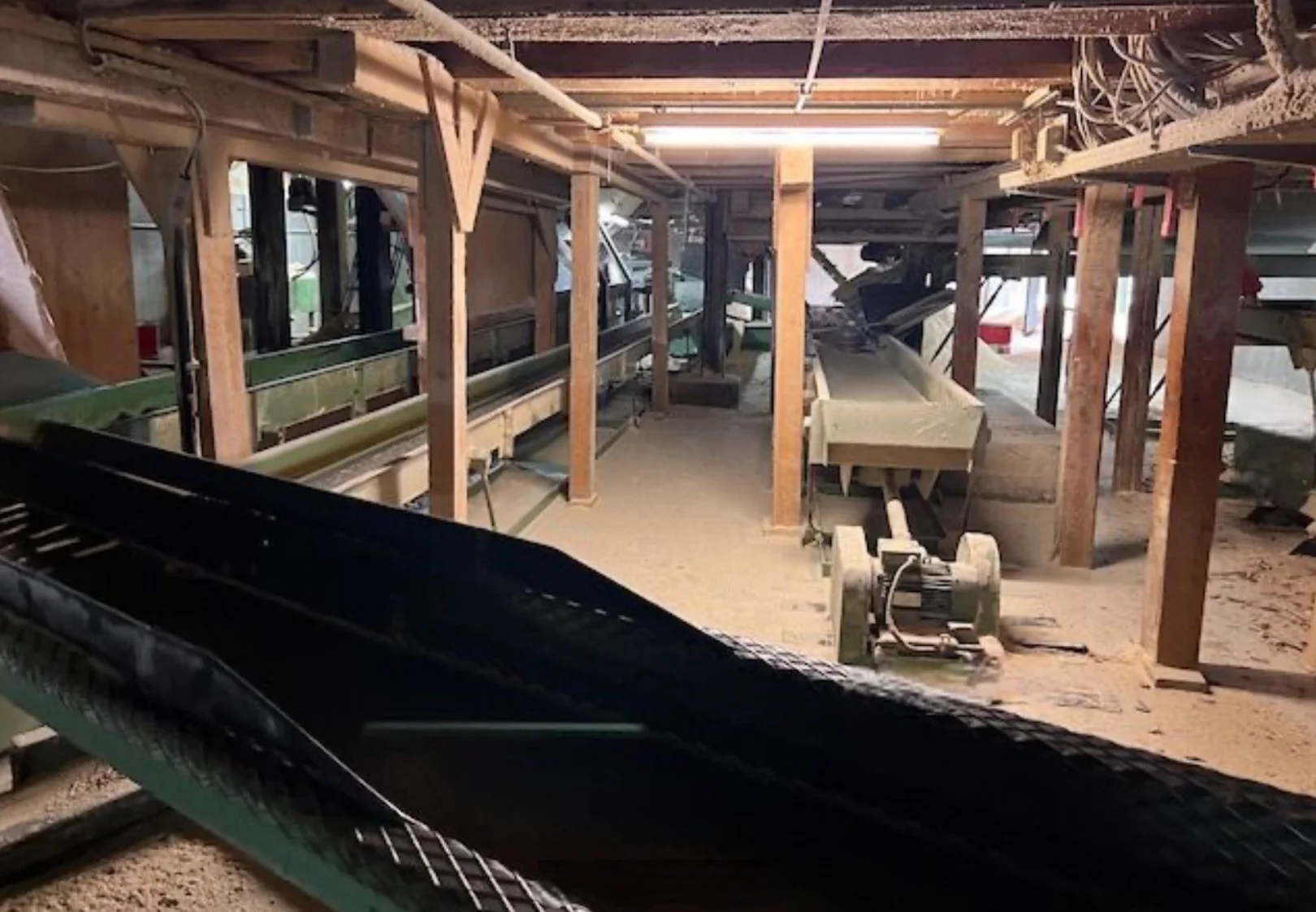

Technical overview - positions 1 to 20

01 - TKF cranked by the reducer, W 600 mm

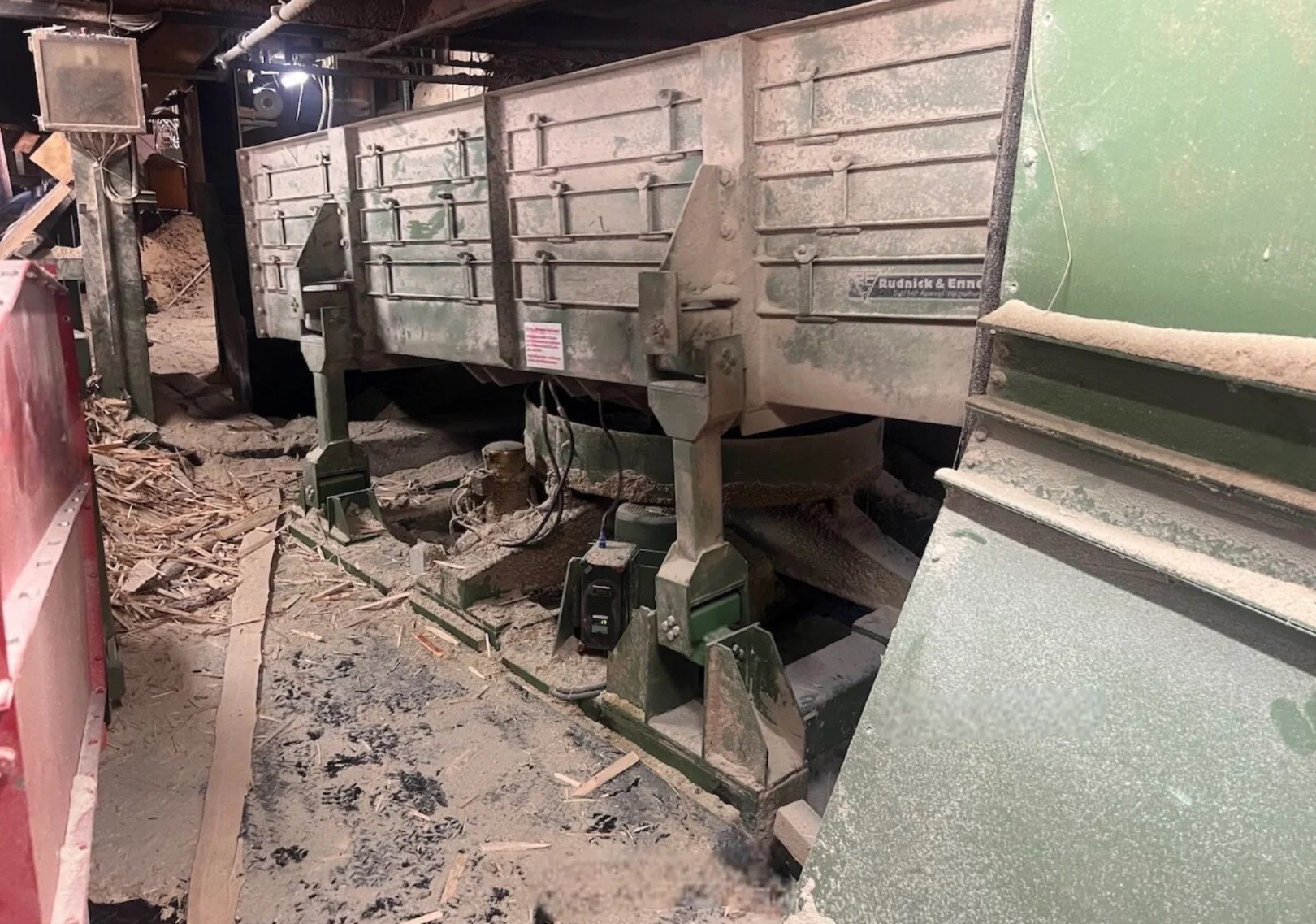

02 - Vibro-channel 1 edging line, L 13.0 m, W 650 mm

03 - Vibro-channel 2 edging line, L 15.0 m, W 650 mm

04 - Vibro-channel creel line, L 8.50 m, W 500 mm

05 - Vibro-channel 1 creel line, L 10.0 m, W 500 mm

06 - Vibro-channel 2-gate line, L 9.0 m, W 500 mm

07 - Vibro-channel creel roller conveyor, L 7.50 m, W 500 mm

08 - Vibro-channel after-cut line, L 11.0 m, W 650 mm

09 - Vibro chute after-cut line, L 9.0 m, W 650 mm

10 - Sawdust auger conveyor, L 4.0 m, Dm 300 mm

11 - Conveyor belt to chipper, L 3.60 m, W 500 mm

12 - Slab conveyor belt, L 11.0 m, W 300 mm

13 - Dirt conveyor belt, L 11.60 m, W 300 mm

14 - Metal detector

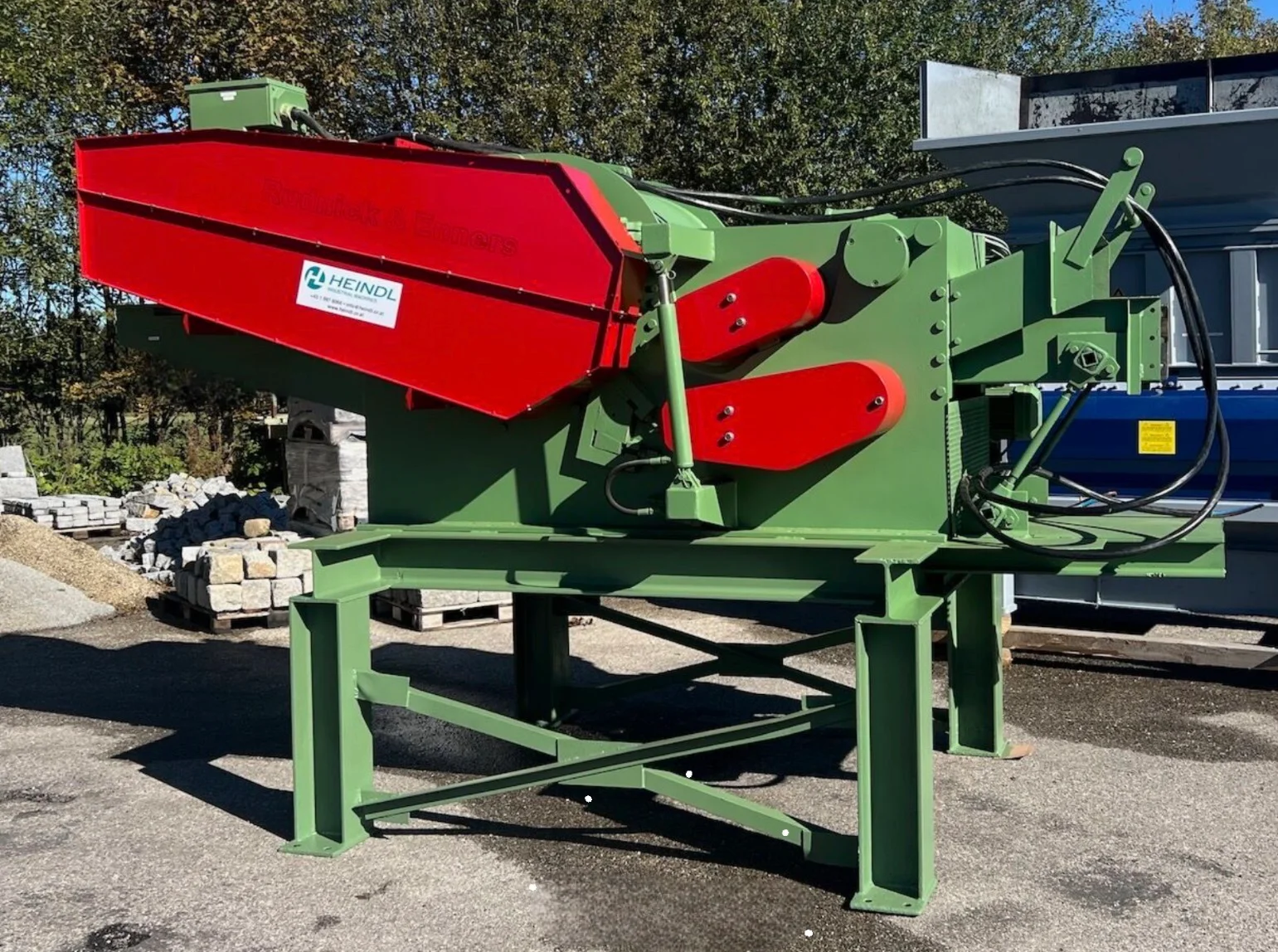

15 - Chipper type RE-TH 250/700/5, motor 75 kW

16 - Double auger under chipper, W 600 mm

17 - TKF cranked to screen, W 600 mm

18 - R&E screen, L 4.0 m, W 2.0 m

19 - TKF cranked to landfill, W 500 mm / W 300 mm

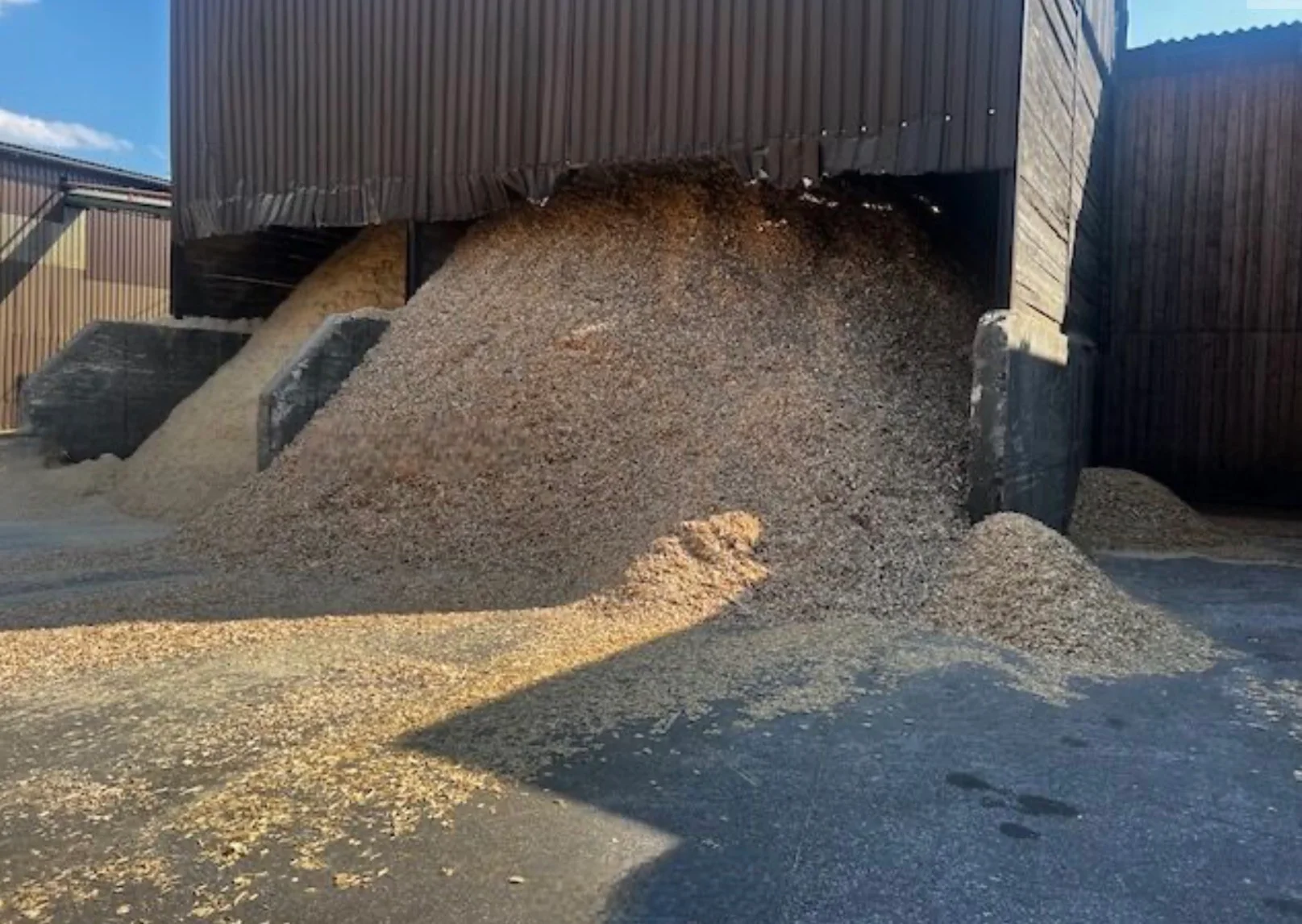

20 - TKF to the wood chip store, W 600 mm

Additional information

Manufacturer Rudnick & Enners

Year of construction 2011

Condition very good, used and dismantled

Availability immediately from stock

Location A-3525 Lugendorf, Austria

Area of application Sawmills, biomass plants, wood processing

Further information in the Pdf
