Planer

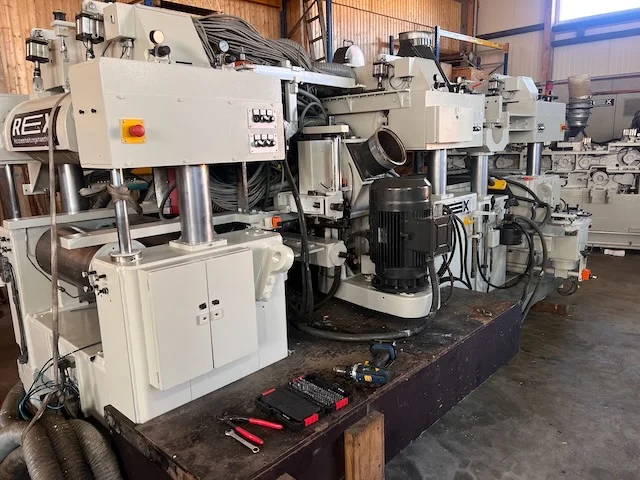

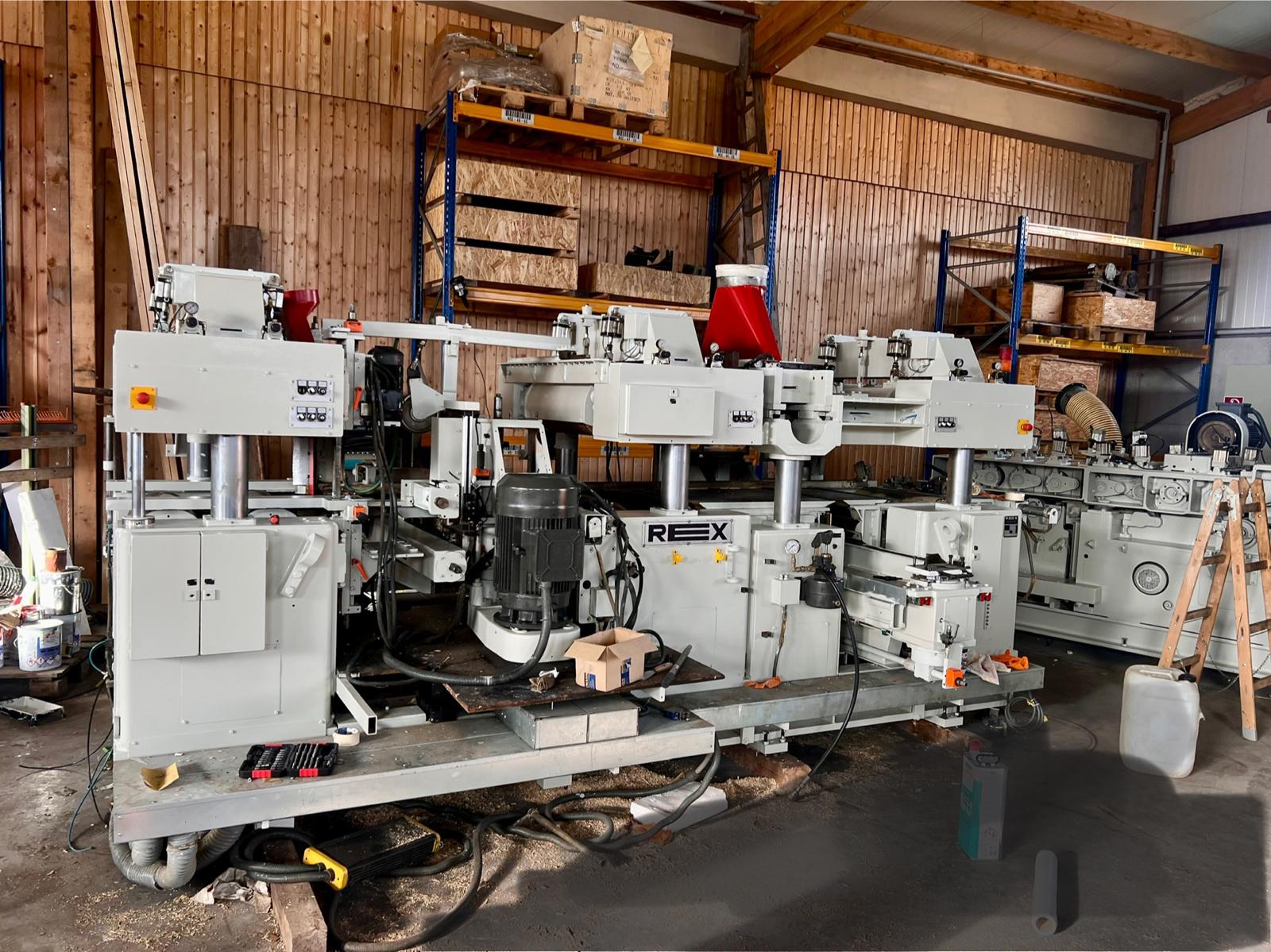

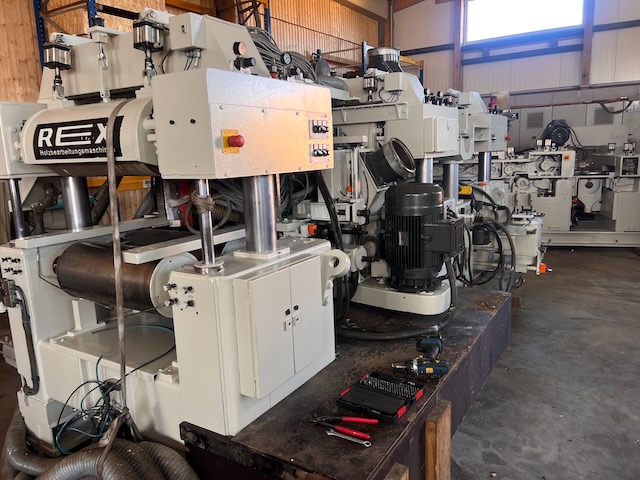

REX SUPERMASTER Year 2003 - SUMA-8/63.WW

Machine number: 22.500

Year of construction: 2003

1. general data

• Machine type: Planing and profiling machine with chamfering devices
• Total connected load: approx. 222.8 kW
• Feed speed: 10 - 100 m/min (adjustable, frequency-controlled)

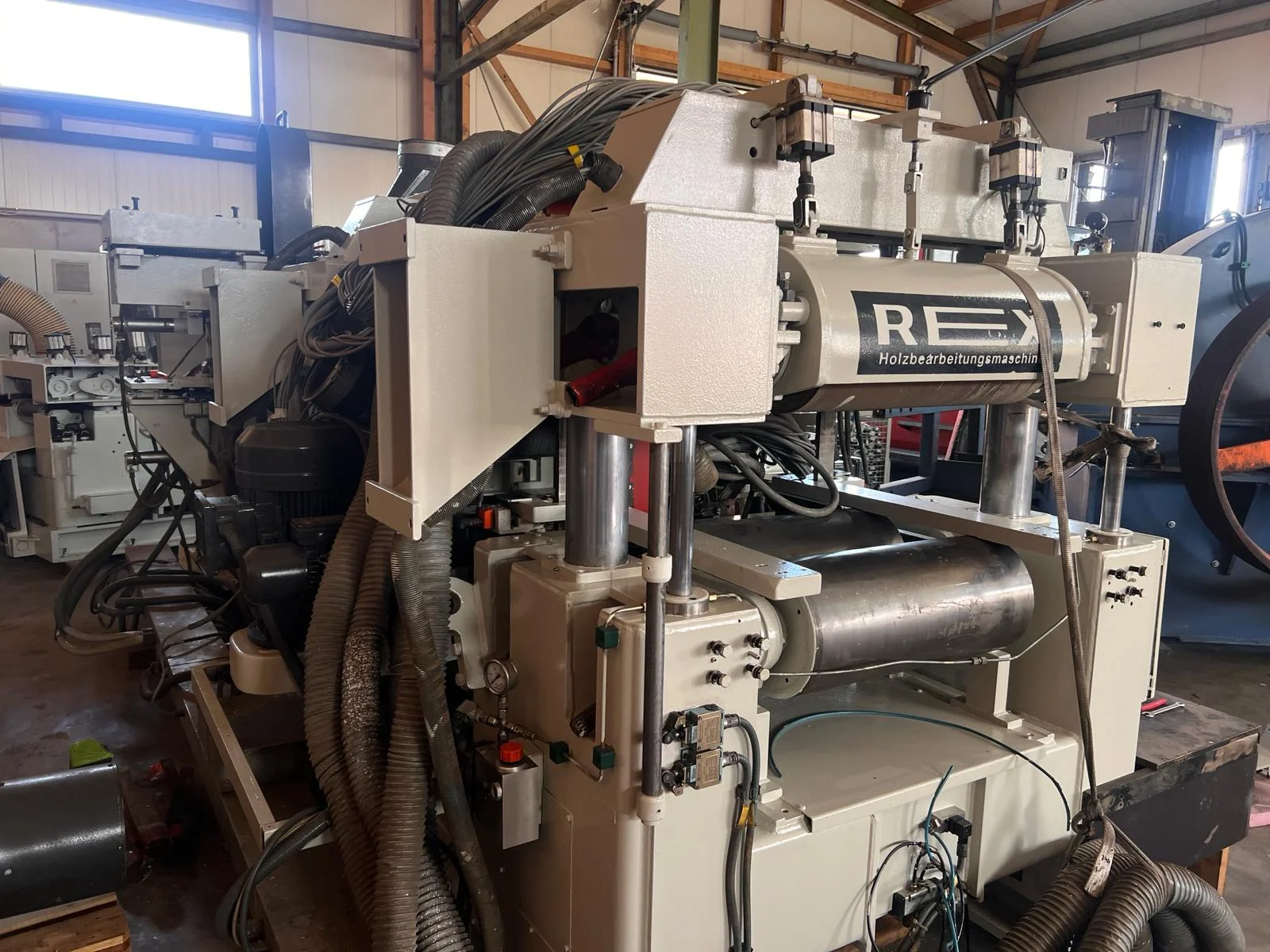

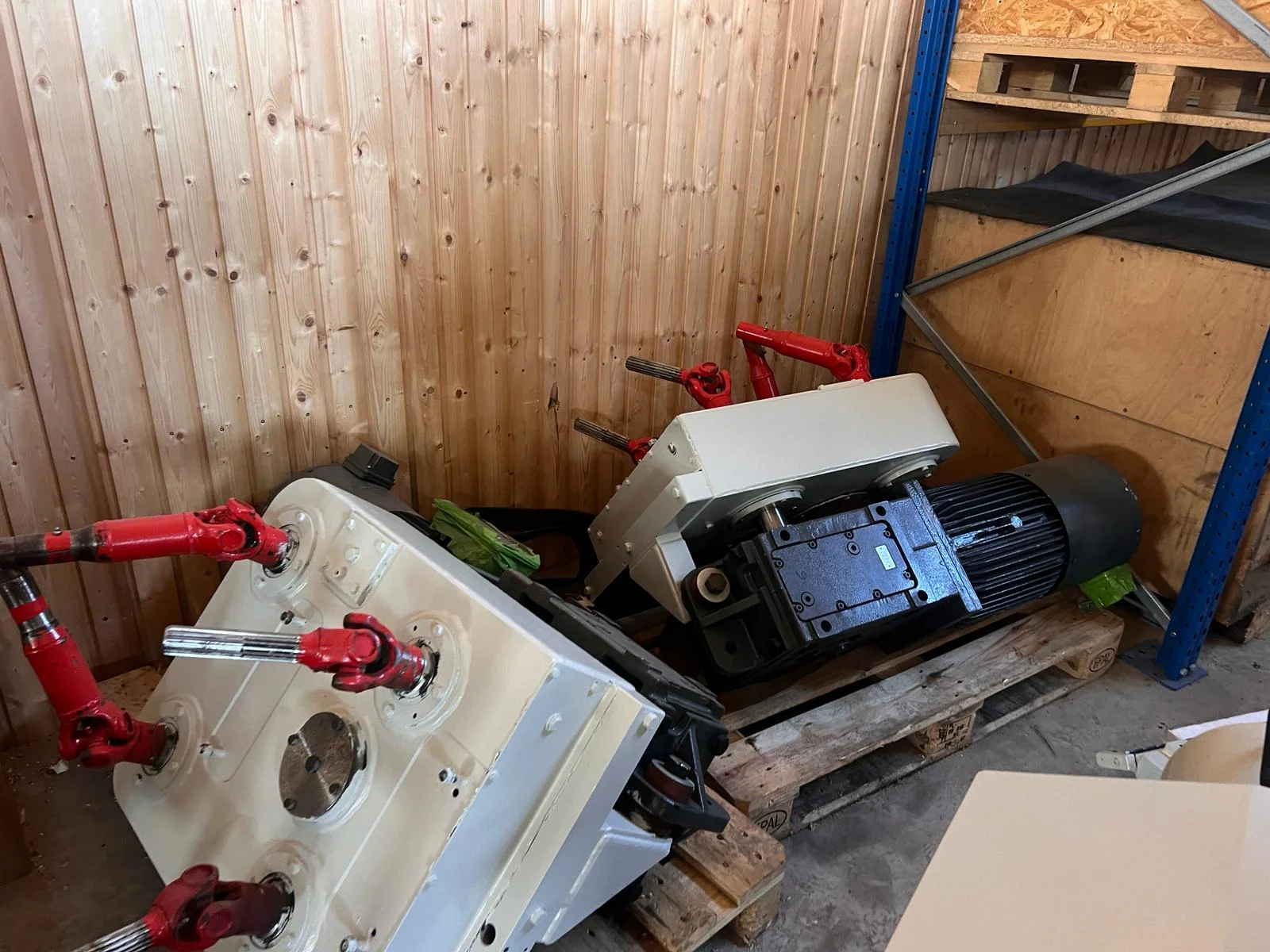

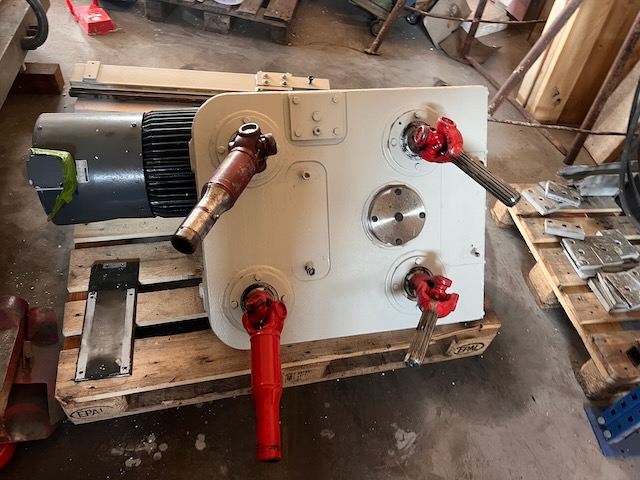

• Heavy pull-out unit (AZG): 4 rollers, pneumatic roller pressure, cardan joint shafts

1. tools / aggregates

Hobkow Ttvwo N Nqx Hsfn

- Planing shafts:

• Lower planing shaft: 37 kW
• Upper working shaft: 45 kW
• Right working shaft: 22 kW
• Left working shaft: 22 kW

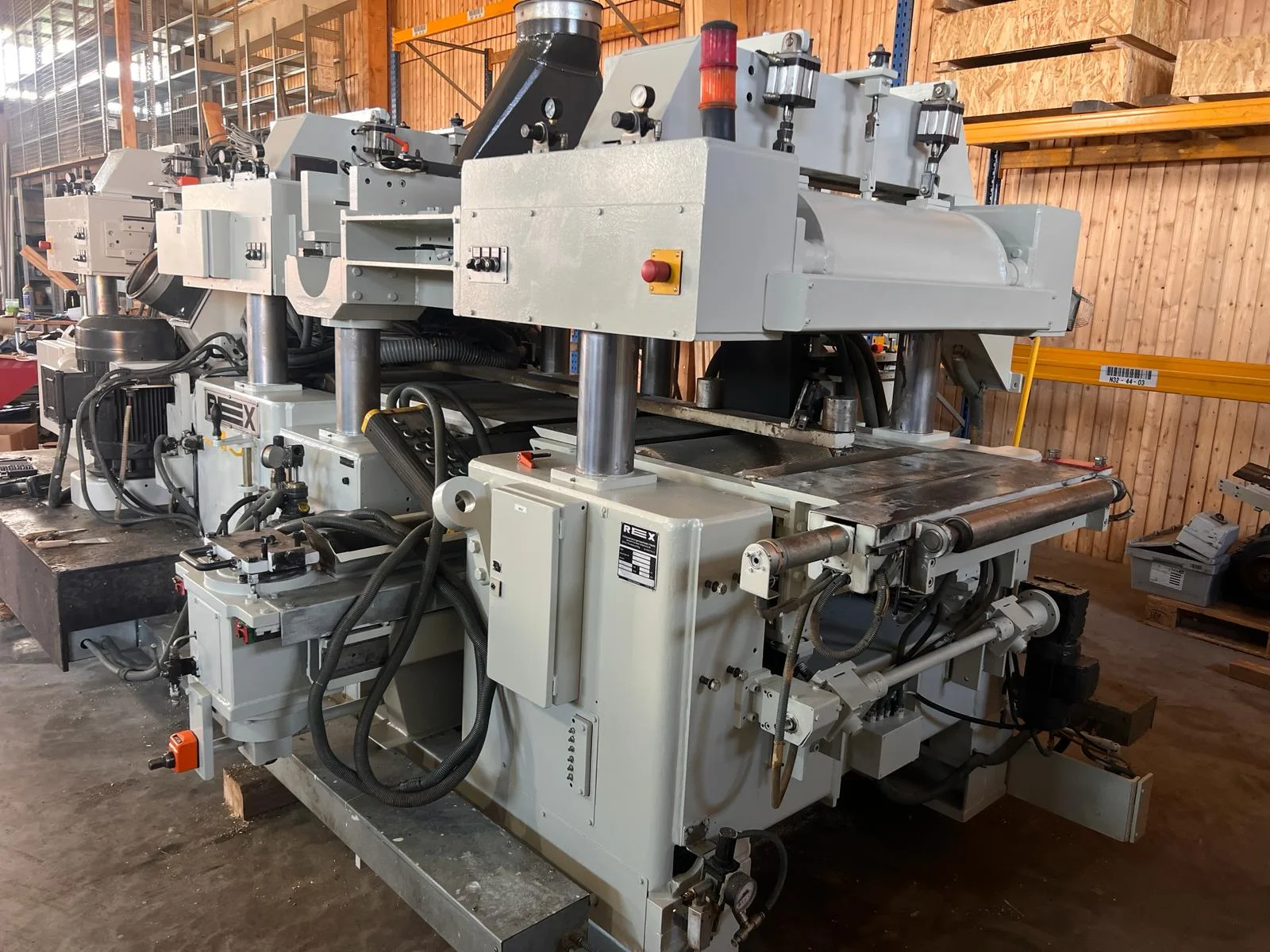

- Chamfering devices (chamfering units):

• 4 × chamfering units (AFVo / AFVu, left/right, top/bottom) - 1.85 kW each
• Speed: approx. 5600 rpm, height-adjustable to the bevel width

Total number of processing tools: 8 pieces

(4 planing/working shafts + 4 chamfering units)

1. drives

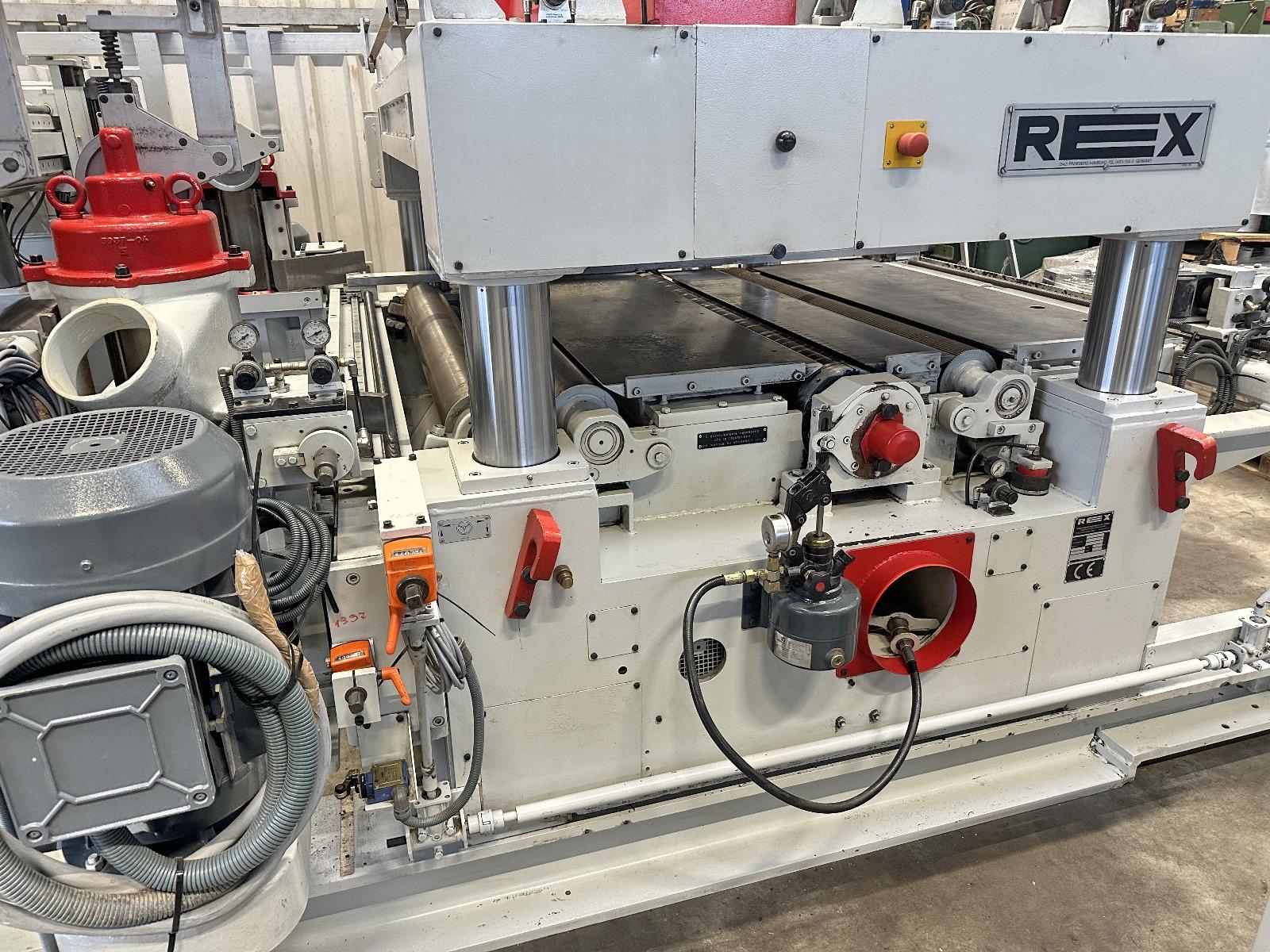

• Feed unit: approx. 32 kW

- Additional motors (separate):

• Height adjustment (thickness)
• Width adjustment
• Chip adjustment
• Machine adjustment

1. suction unit

• Individual extraction nozzles Ø 160-200 mm depending on the unit
• Total required extraction capacity: approx. 25,350 m³/h

1. accessories

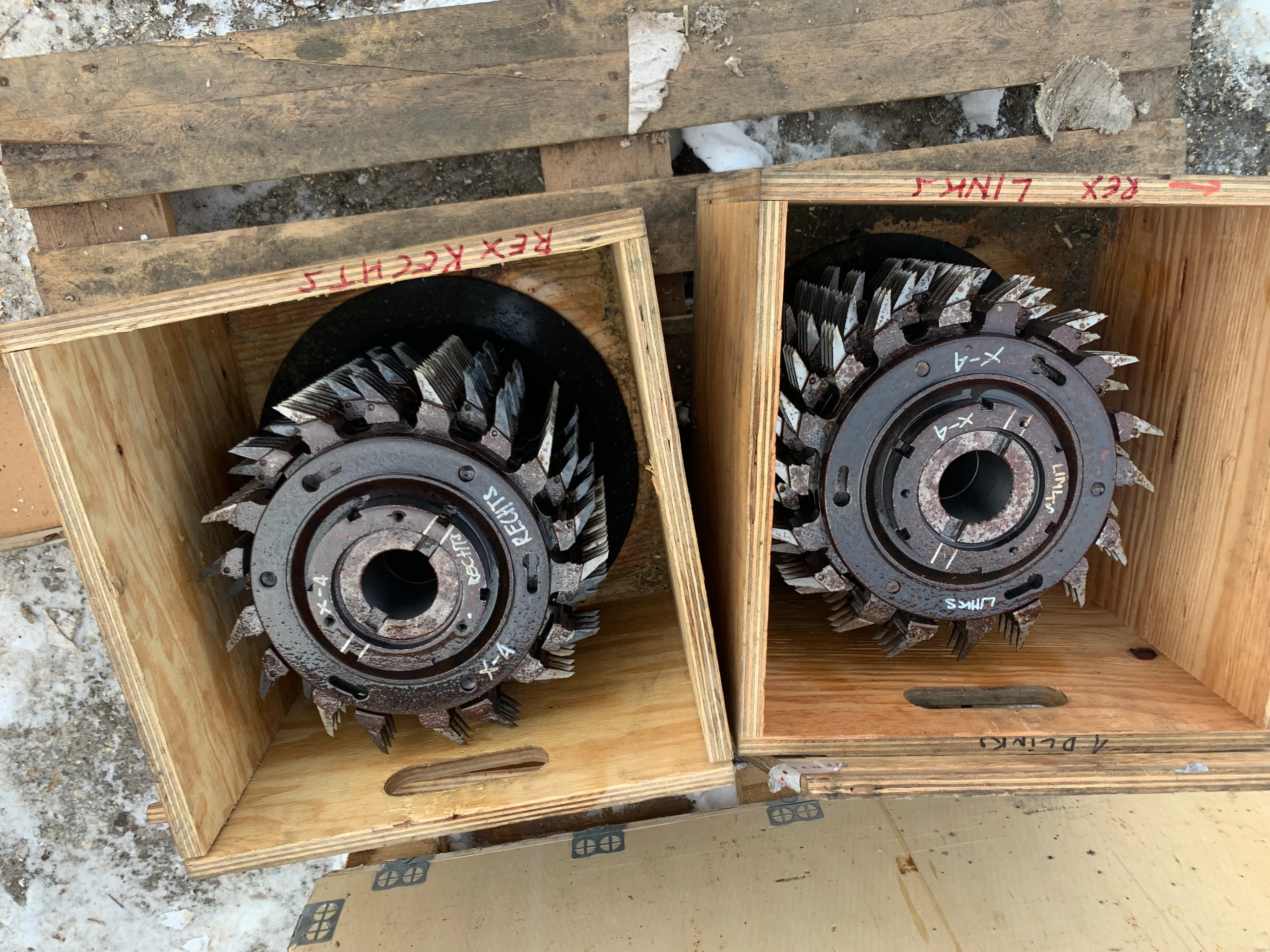

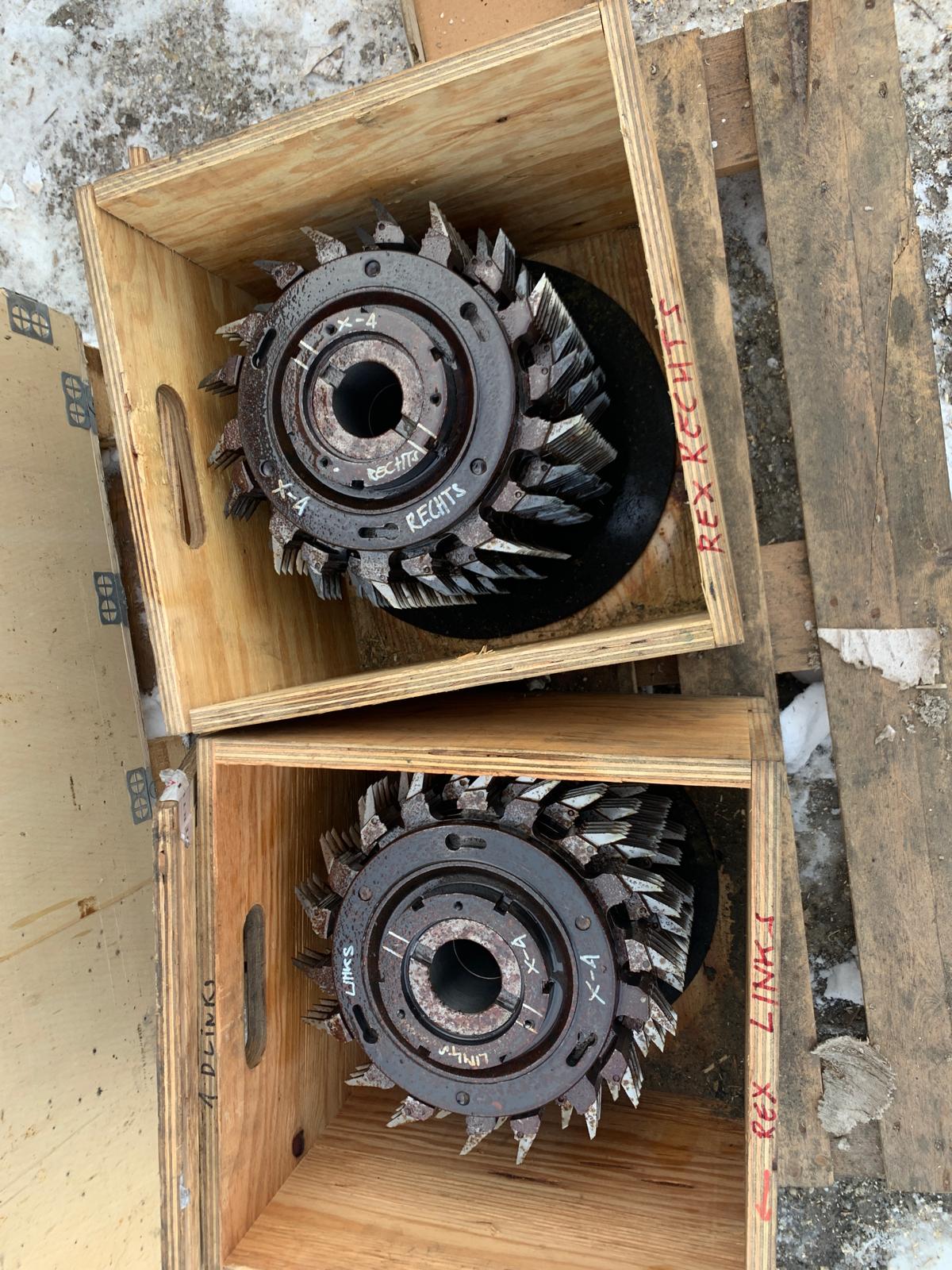

• Various planing heads and tools (see photo documentation in the appendix)

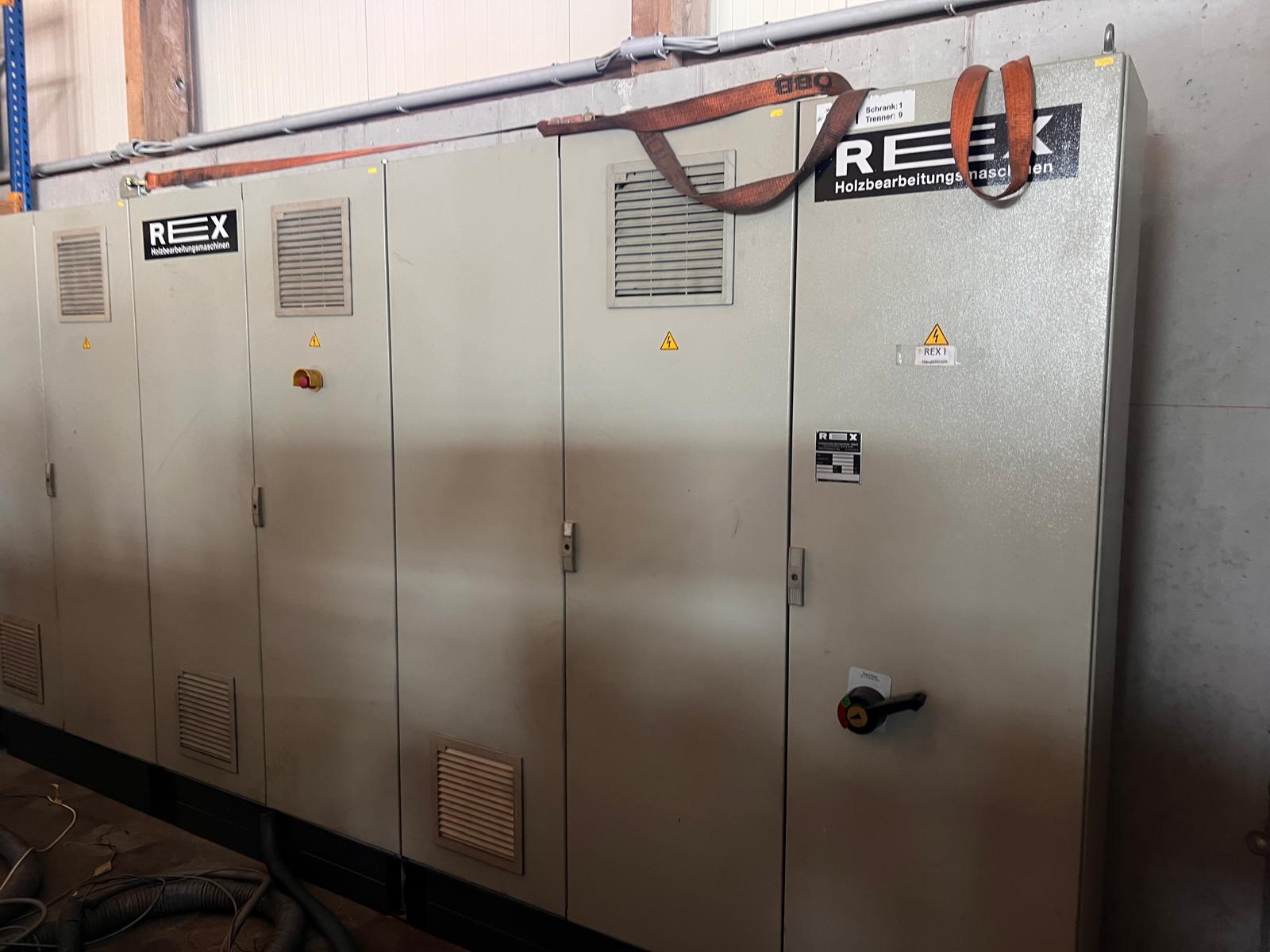

• Control cabinet included

The SUPERMASTER series offers optimum results in the production of high-quality bar products such as solid structural timber (KVH), duo/trio beams or glulam. The machines in the SUPERMASTER series are also used in the production of cross laminated timber (CLT). Thanks to the powerful feed system, large, heavy, wet, frozen and even small, fine workpieces are no challenge for the SUPERMASTER.
