Technical sales description - Hydromat 17B

General information

Manufacturer: Weinig AG

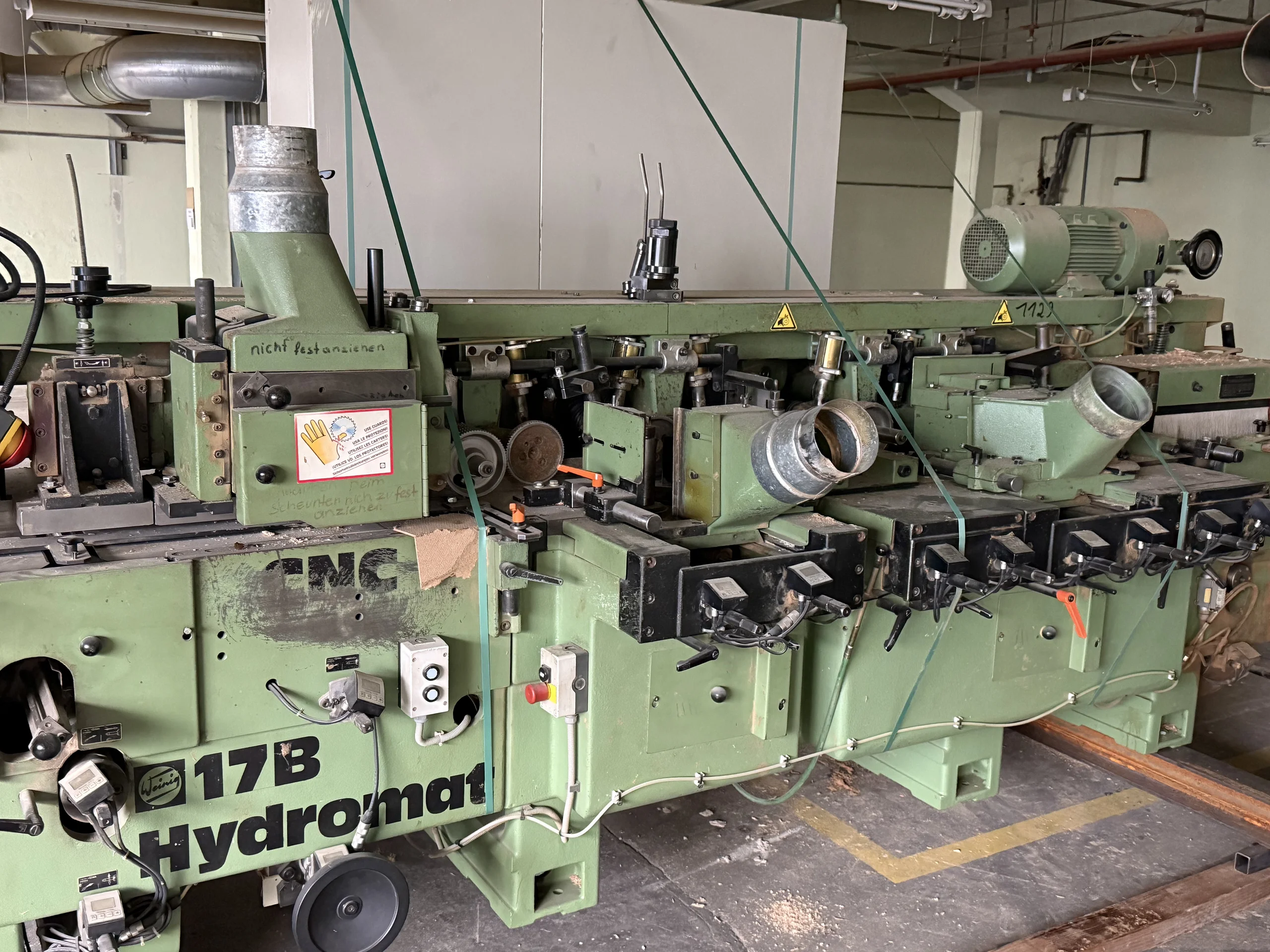

Model: Hydromat 17B

Type: High-performance profile trimming machine / planing and molding machine

Year of manufacture: 1989

Operating voltage: 380 V / 50 Hz

Description: Heavy-duty

Heavy-duty high-performance planer and moulder made of vibration-damping and torsion-free cast parts in a modular system. Designed for precise and economical woodworking with high continuous output. Mechanical feed, adjustable in the range of 5 - 35 m/min, feed motor 5.5 kW (7.5 HP). Jointer table 2 m long, quick adjustment available. Chip removal for dressing and joining spindles, adjustment range 10 mm each.

Technical data

• Feed speed: 5 - 35 m/min, mechanical
• Feed motor: 5.5 kW / 7.5 HP
• Operating voltage: 380 V / 50 Hz
• Table length: 2000 mm
• Setting range chip removal: 10 mm (dressing and jointing side)
• Machine design: Without counter bearing, in high-performance design
• CNC control: Siemens S5-130 WB, with battery-backed RAM memory

CNC control

• 12" screen - Max. 16 axes - mm/inch changeover - Operator guidance and diagnostics system with approx. 120 messages - External input possible - Emergency operation in the event of electronic failure

Special equipment

• 4 NC controls for axis control
• 2 motor boosters from 5.5 kW to 7.5 kW (10 hp) for spindles no. 1 and 6
• Integrated manual control
• Preparation for mounting a universal spindle
• Manually operated roller air pump for table resin removal
• Operating hours counter
• Straight jointer for spindles 4, 5, 6 and 7
• Flying circle 250 mm for spindle 5
• 2 NC controls for high/low positioning
• 1 joining unit with freewheel-driven system
• Sliding rollers for feed rollers (both axes)

Feeding magazine type EHM 14 for Hydromat 17B

• Working width: 220 mm
• Working height from: 10 mm
• Workpiece lengths: 300 - 3000 mm
• Feed: Pneumatic, depending on workpiece length
• Required air pressure: 6 bar
• Number of cycles: 100 cycles/min
• Feed force: 1500 N at 6 bar
