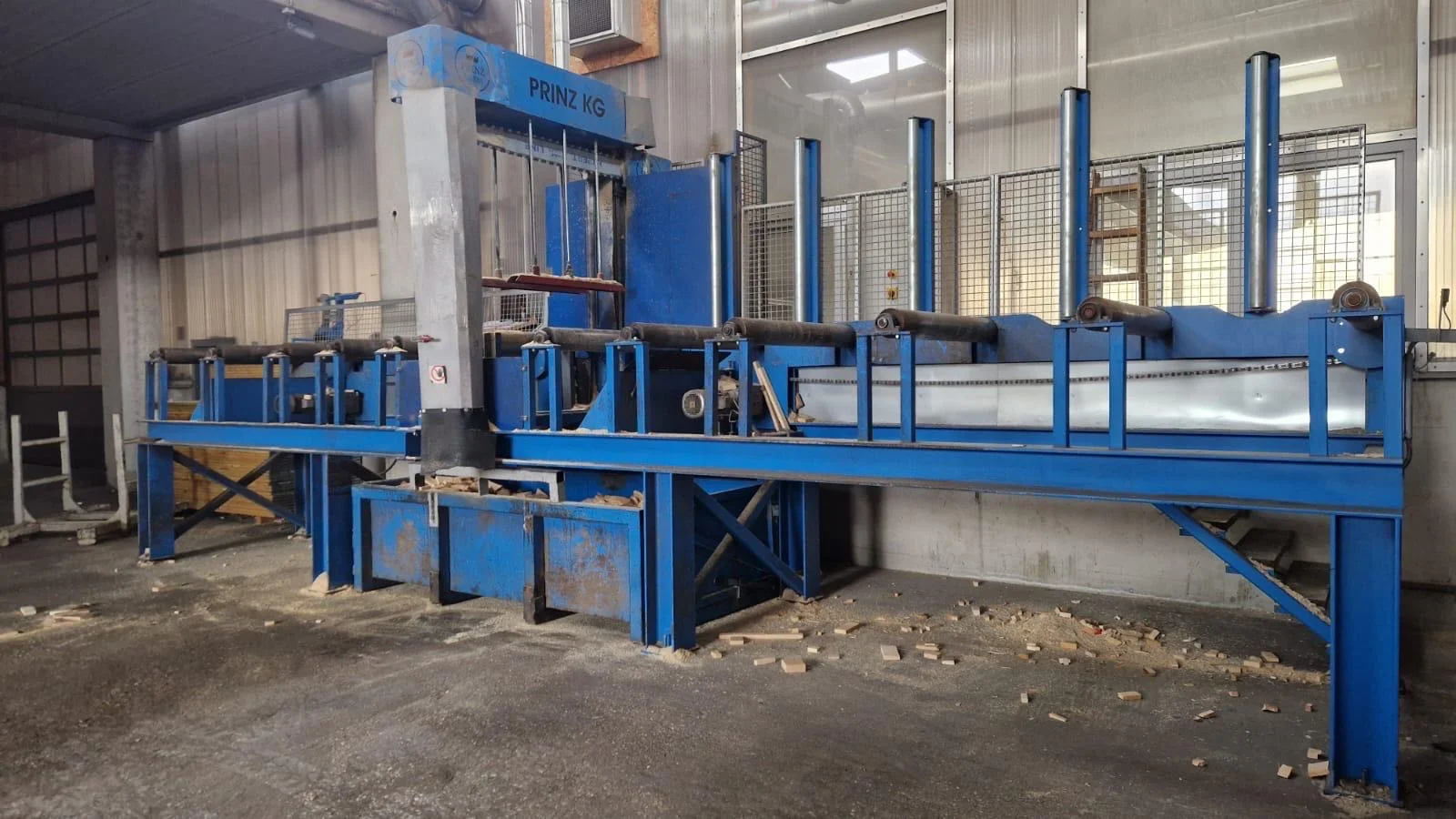

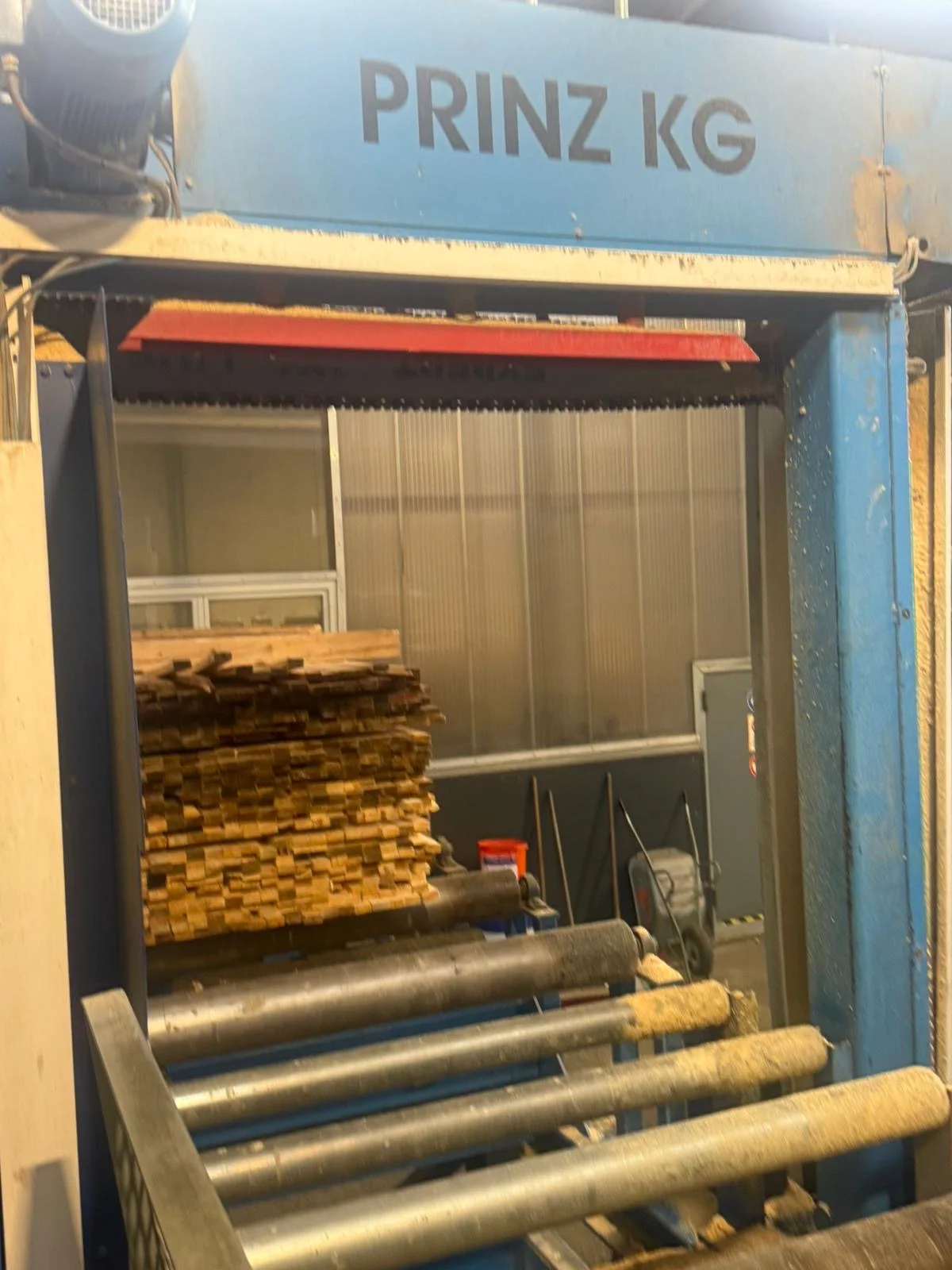

Package crosscut saw

The PRINZ KG cross-cut station PC120 is a robust and precise horizontal cross-cut saw for industrial use in sawmills and wood processing.

The system is ideal for cutting timber packages to length and impresses with its stable design, high cutting accuracy and reliable technology.

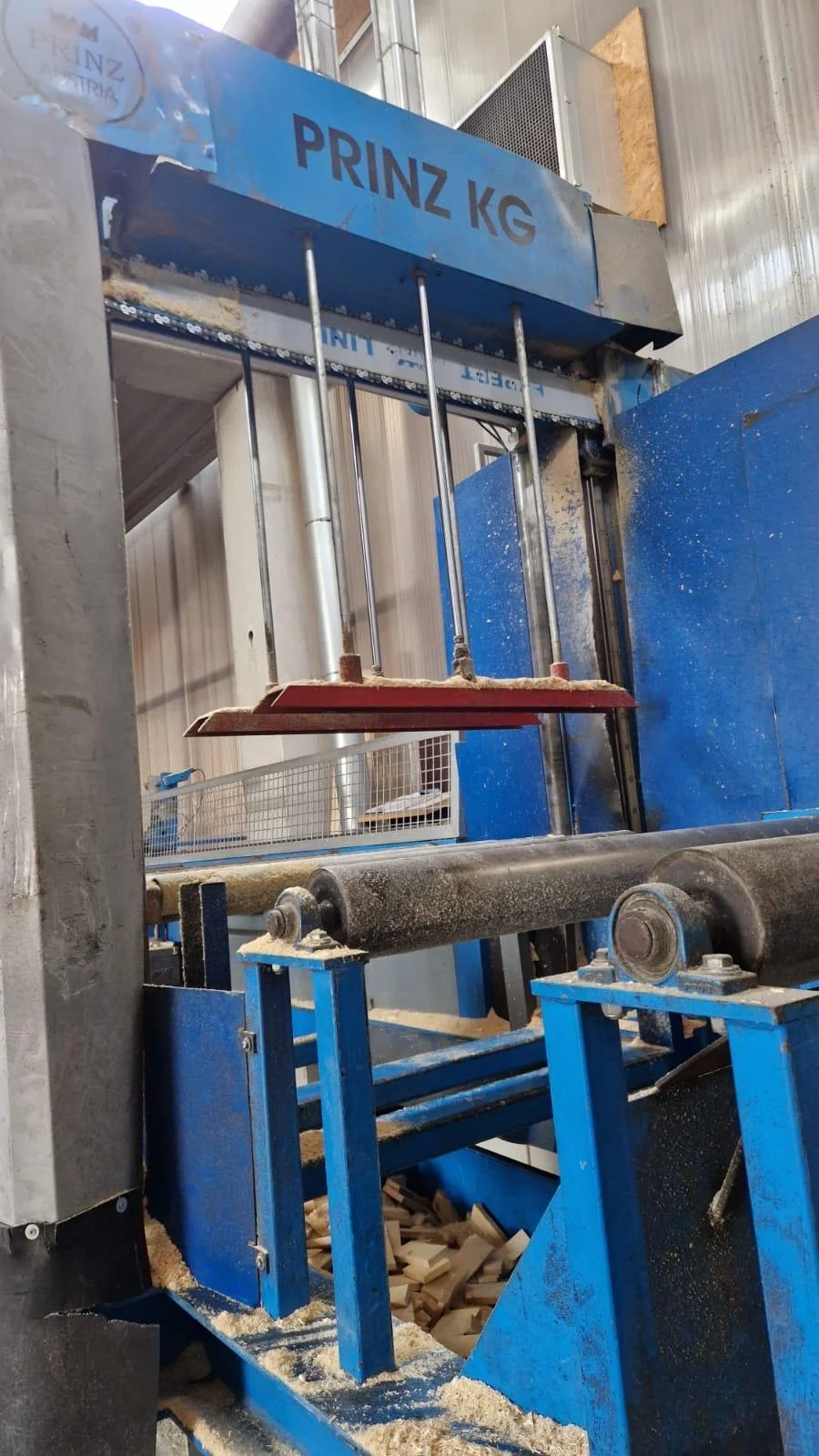

Equipped with a pneumatic hold-down device, the material is held securely in place during the cutting process. The machine is designed for continuous operation and is already prepared for extraction.

Technical data

• Manufacturer: PRINZ KG
• Type: PC120 horizontal cross-cut saw
• Voltage: 3 x 400 V / 50 Hz
• Power: 11 kW (15 HP)

- Max. Package size:

• Width: approx. 1200 mm
• Height: 370 mm - 1300 mm
• Max. Cutting width: approx. 1370 mm

- Hold-down device:

• pneumatic
• Stroke: 1000 mm
• Operating pressure: approx. 6 bar

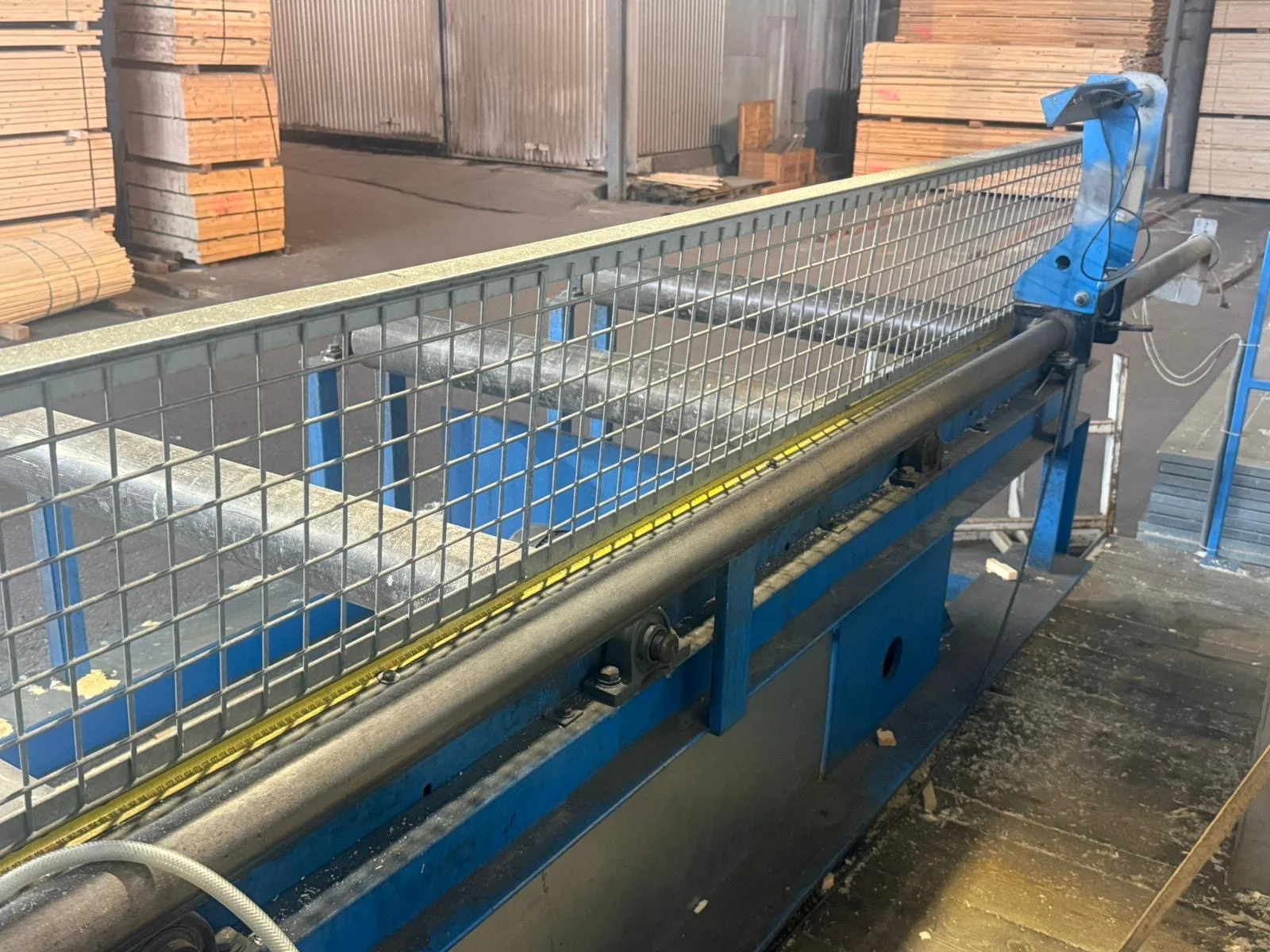

• Conveyor technology: integrated roller table

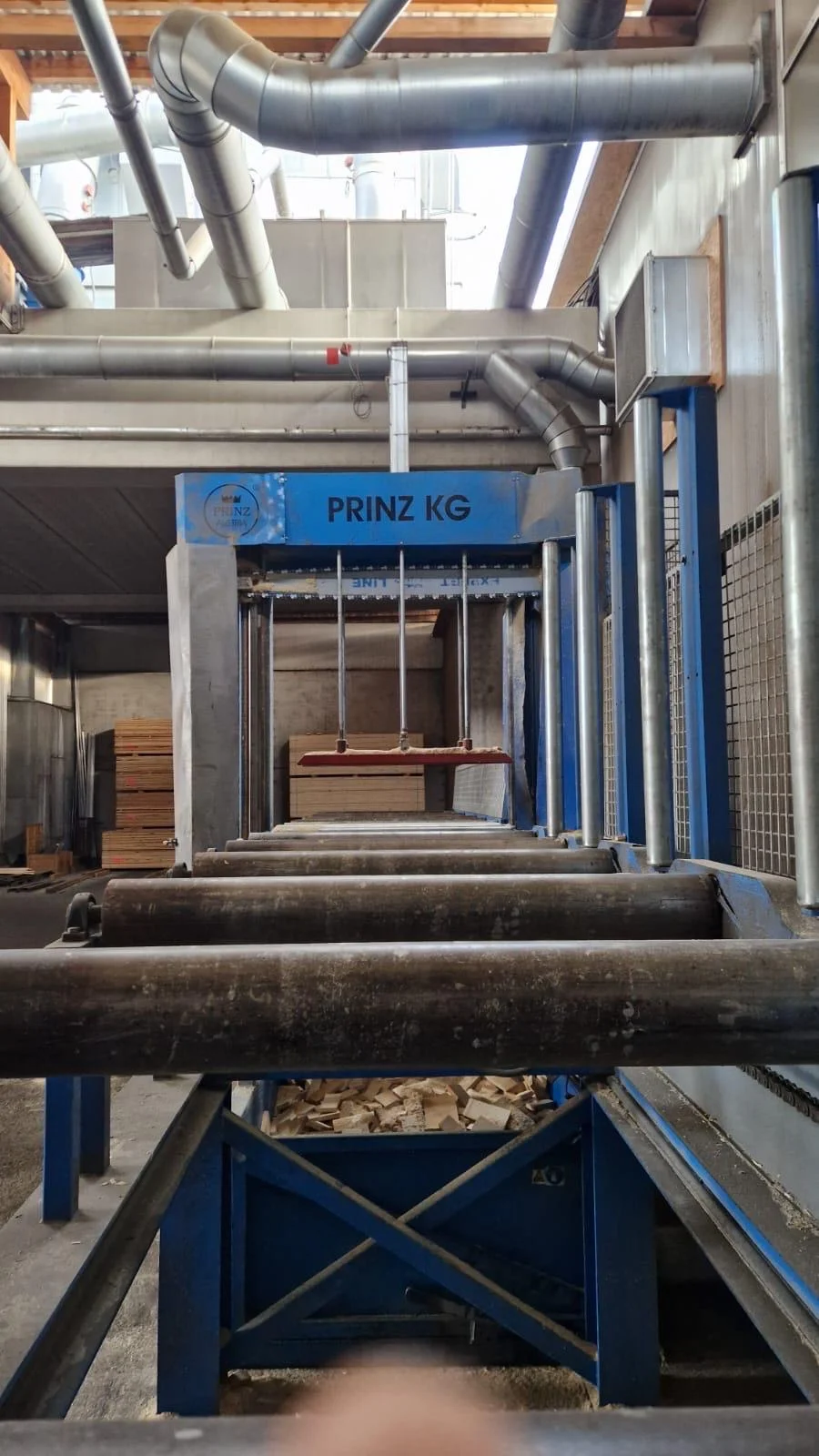

- Suction:

• Connection Ø 180 mm
• Recommended capacity: approx. 2290 m³/h
• Chain lubrication: fully automatic with tank
