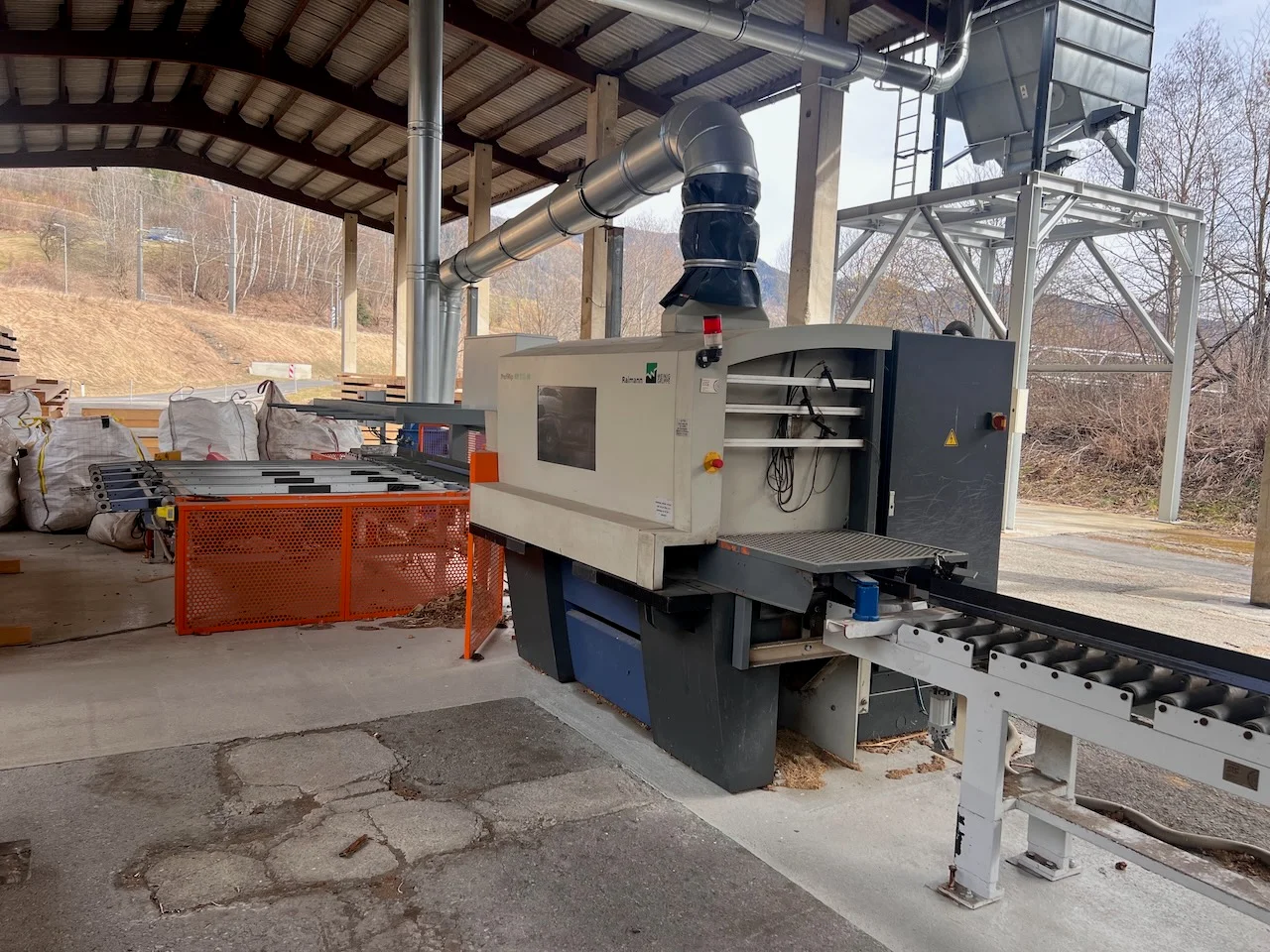

Multirip saw

Raimann ProfiRip KR 310 M year 2004 (new rebuild in 2021 !!) with 2 movable flanges

Cutting width (usable)

Track width 340 mm

Total - passage width

max 950 instead of 800 mm

Cutting height with / without pressure board

115/130 mm

Workpiece length

450 mm min

Saw blade

max. diameter 380 mm

Saw blade

min. diameter 250 mm

Saw blade bore

80 mm

Saw spindle diameter

65 mm

Saw spindle speed

3900 rev / min

Engine power

30 kW

Laser - directional lights

2 pc.

Operating push

6 bar

Infinitely variable feed - speed

8-48 m / min. 1.5 kW

Weight

3400 kgs

Voltage

400V/50Hz

Location

stock Lugendorf
