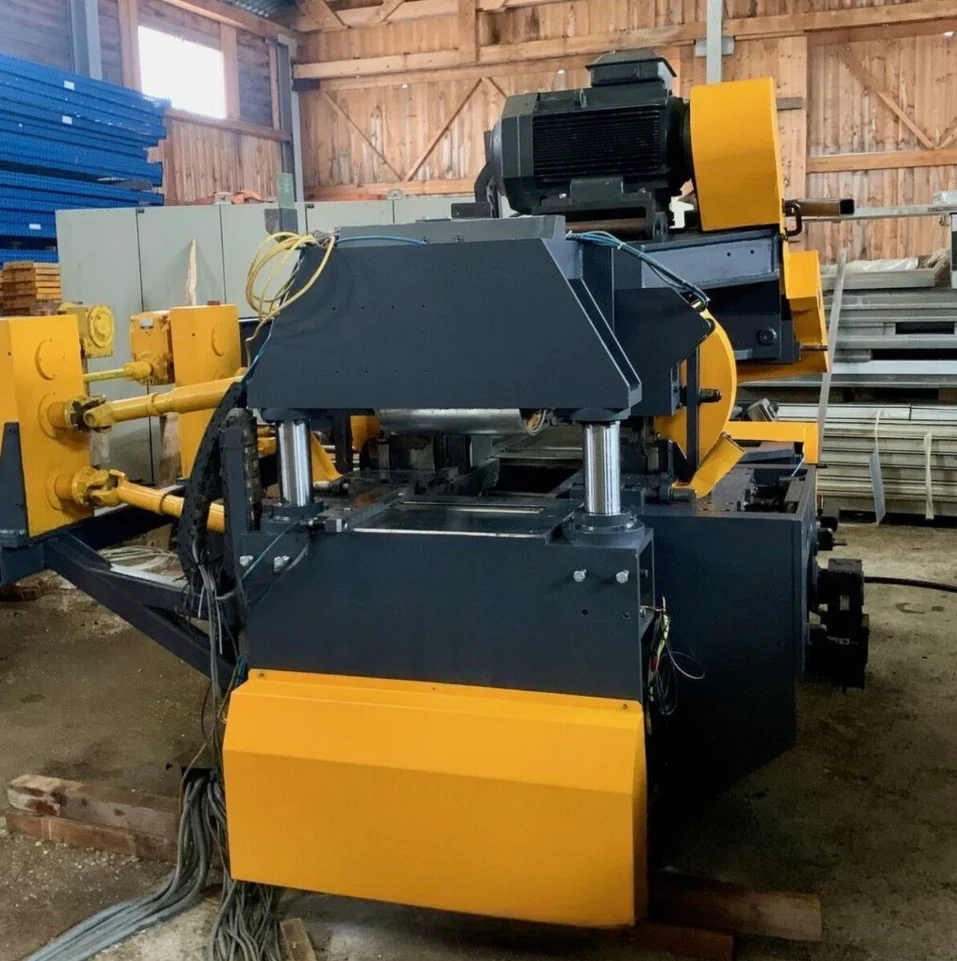

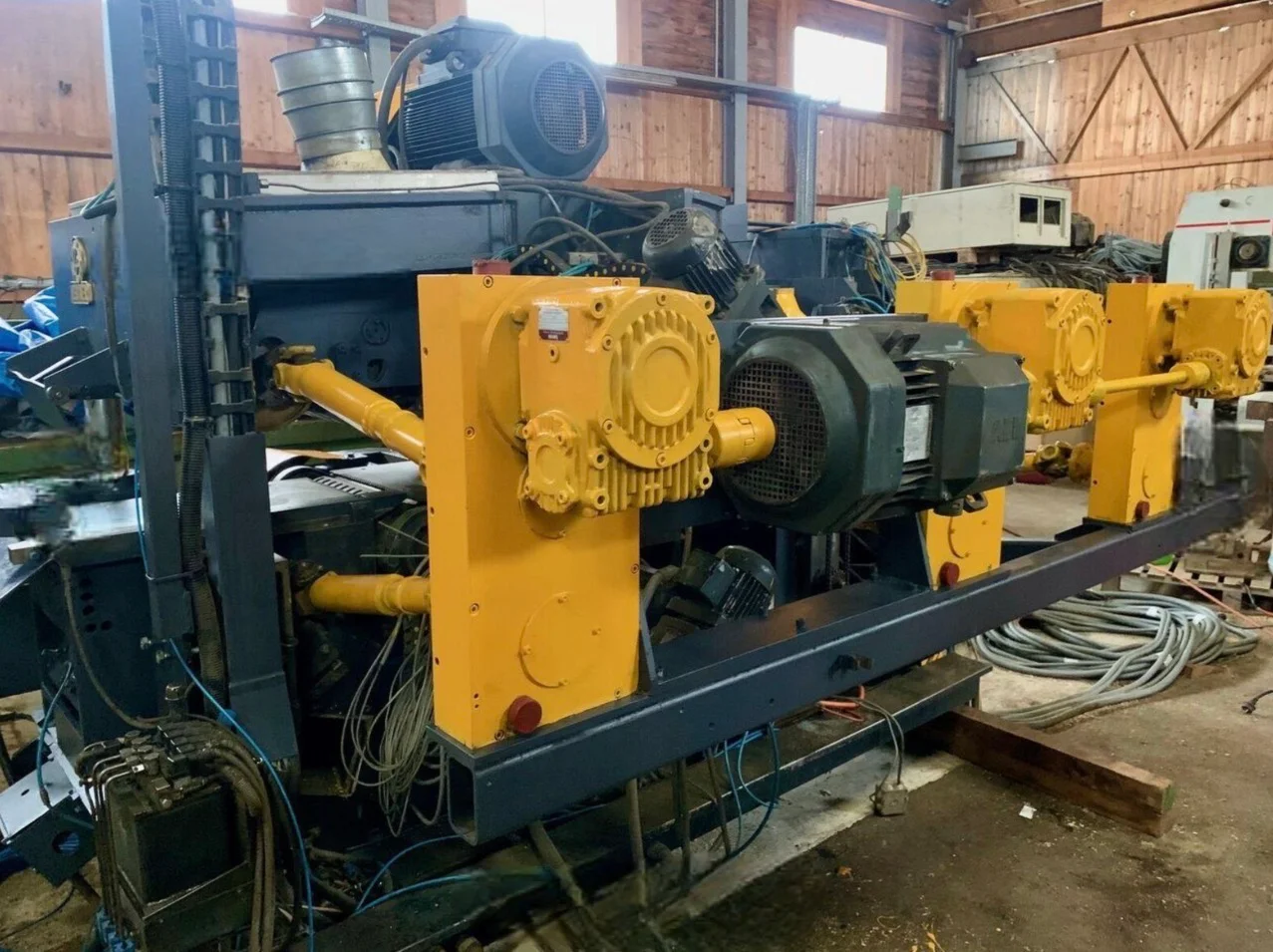

Ledinek Superles 300

• Manufacturer: Ledinek
• Model: SUPERLES 300 4V-SL
• Machine type: Four-sided planer
• Working width: 300 mm
• Workpiece height: approx. 8-160 mm
• Planing units: 4
• 1 × bottom
• 1 × top
• 1 × left
• 1 × right
• Planing shaft speed: approx. 6,000-7,200 rpm
• Blade system: conventional planer shafts (fitted with blades)

- Drives:

• Separate motors for each planing unit
• Separate feed motor
• Motor power per planing shaft: approx. 3-7.5 kW
• Operating voltage: 400 V three-phase current
• Feed system: motor-driven feed rollers
• Feed speed: approx. 10-30 m/min (adjustable)
• Pressure: pneumatic
• Suction connections: separate for each unit
• Suction diameter: approx. 120-160 mm
• Machine construction: heavy cast iron/steel construction
• Control: electrical / electromechanical
• Safety equipment: emergency stop, protective covers, interlocks

The Ledinek SUPERLES 300 4V-SL is a professional four-sided planer (4-sided planer) for industrial woodworking. It was developed to process a workpiece on all four sides simultaneously in a single pass - i.e. top, bottom, left and right side - and is robustly built, designed for continuous use and combines precision with high productivity. Typical areas of application are joineries, planing mills, furniture production and timber construction, where large quantities or precise custom work are required.

The SUPERLES 300 series stands for a working width of approx. 300 mm, but is also suitable for larger workpieces with the appropriate equipment. The control is usually electrical/mechanical with possible frequency converters for feed or speed control.
