Edger

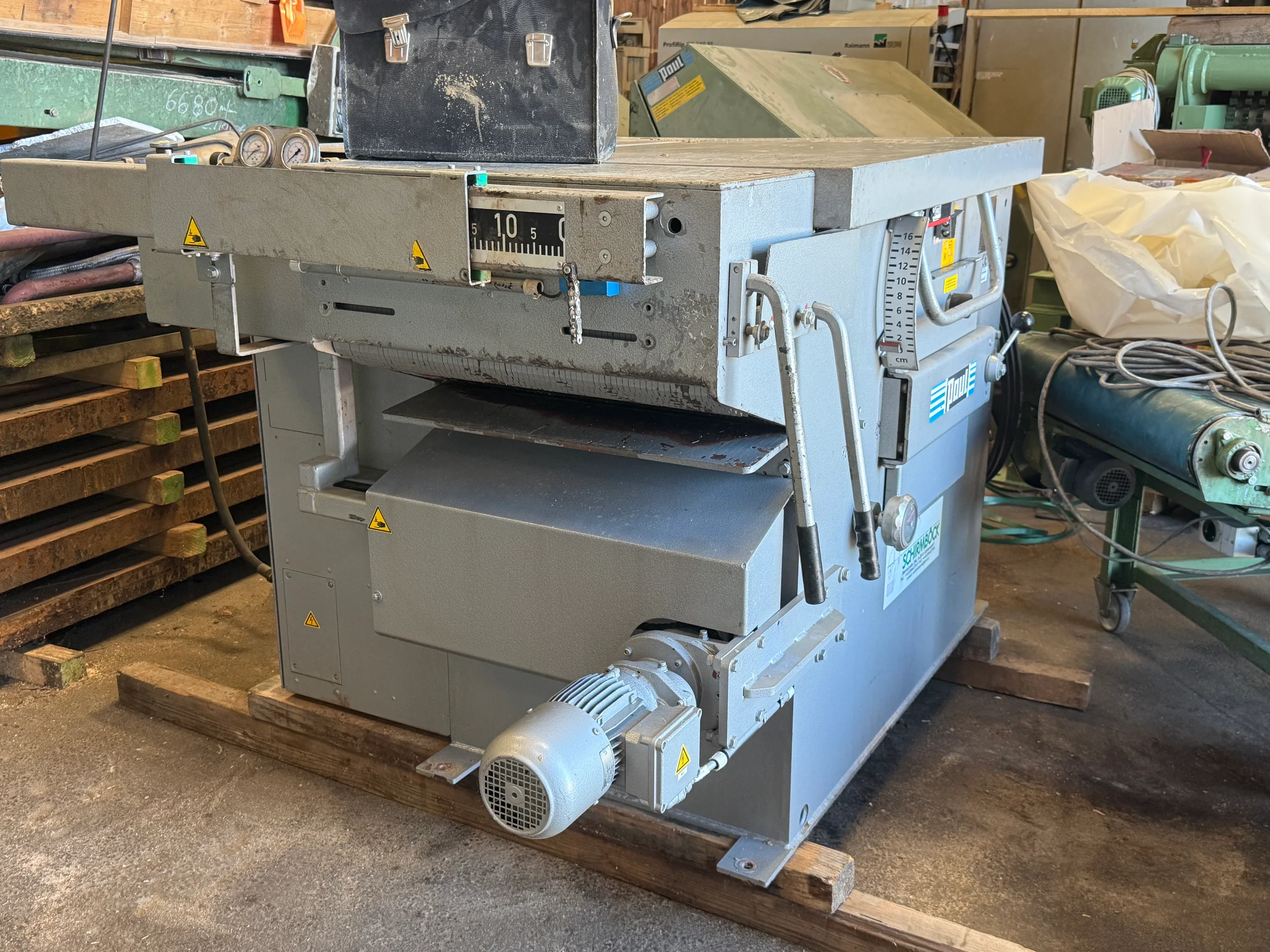

Technical description - PAUL KMEZ-750-L double edger (year of manufacture 2012)

The machine on offer is a PAUL KMEZ-750-L double edger, built in 2012. The machine is in good condition and ready for immediate use. It is ideal for precise edging of wood in industrial applications.

Technical data:

• Machine no.: 12242770
• Year of construction: 2012
• Own weight: approx. 1,500 kg

Drive & electrics:

• Connected load: 38 kW
• Mains voltage: 400 V / 50 Hz
• Rated current: 71 A
• Fuse protection: 80 A
• Control voltage: 24 V DC

Sawing technology:

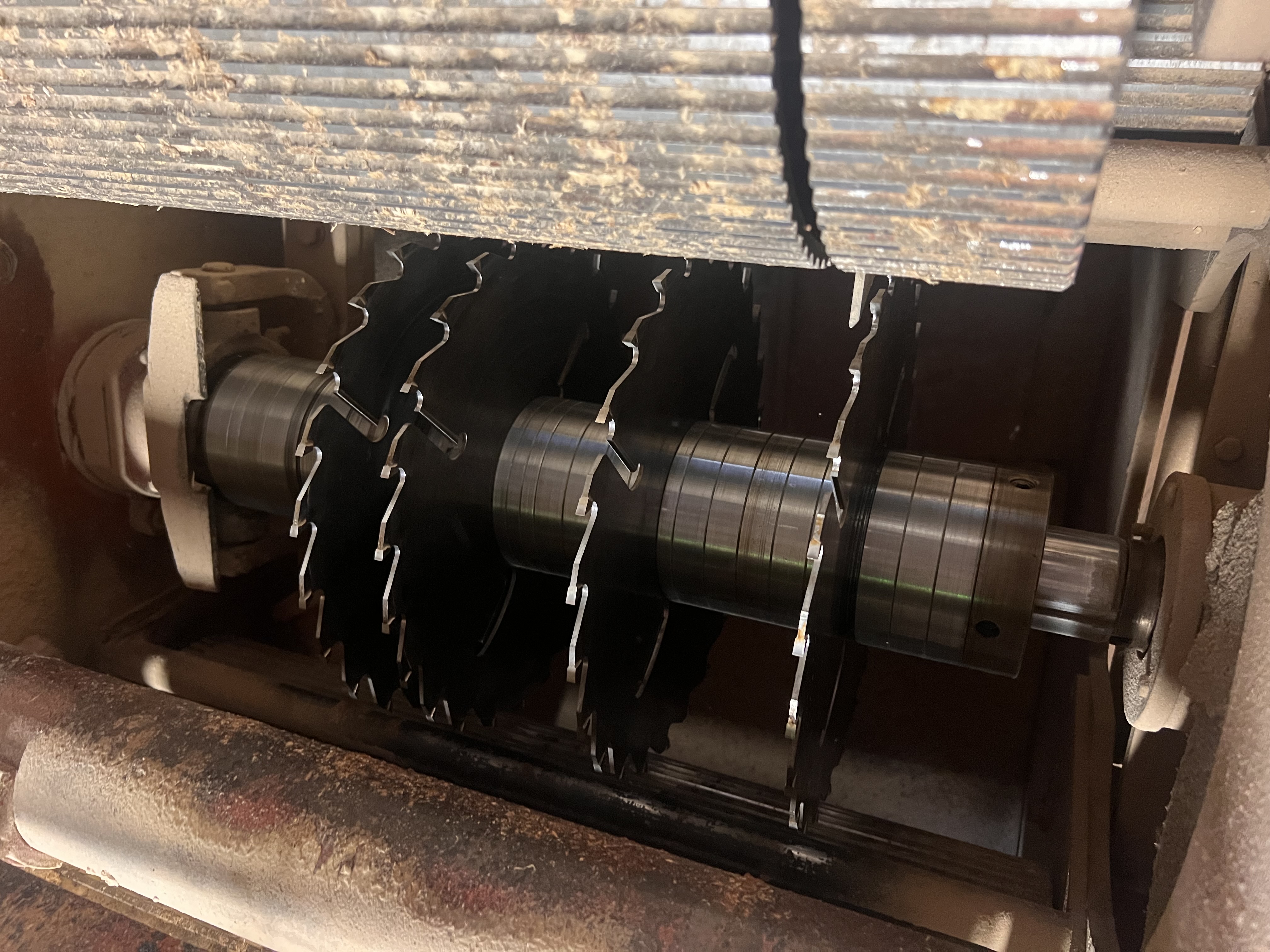

• Saw blade speed (min/max): 250 / 380 rpm
• Bore diameter: 75 mm
• Saw motor speed: 3,200 rpm

Hydraulics & pneumatics:

• Hydraulic pressure: 60 bar
• Pneumatic pressure: 6 bar

Equipment:

• Feeding rollers for easy insertion of the material
• Integrated alignment readers for automatic alignment
• Batten bush
• Splitting disk divider
• Discharge table for orderly material discharge

This high-quality machine from PAUL is designed for continuous use in industrial woodworking and is equipped with practical additional features that enable an efficient workflow.
